>> B << Dust Shield Installation

WARNING: This page is about a different variant/trim than selected.

Use special tools MB991388 and MB991576 to press-fit the knuckle into the dust shield.

NOTE: Use the bolts (M12) to align the caliper mounting holes.

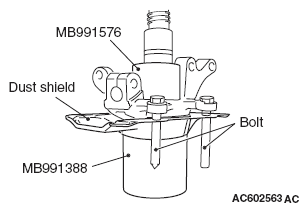

Fig 1: Pressing Knuckle Into Dust Shield Using Special Tools MB991388 And MB991576

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
