Hub Bolt Replacement

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

  1. Remove the brake caliper assembly and brake disc, and retain the brake caliper assembly with a wire and the like to prevent from falling (Refer to FRONT AXLE HUB ASSEMBLY  ).
  2. Use special tool MB991618 to remove the hub bolts.
    Fig 1: Removing Hub Bolts Using Special Tool MB991618
    G05376081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

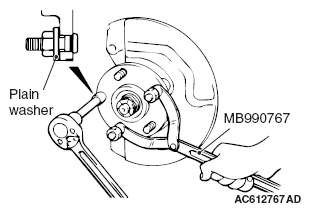

  3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
  4. Install the brake disc and the brake caliper assembly (Refer to FRONT AXLE HUB ASSEMBLY  ).
    Fig 2: Installing Brake Disc And Brake Caliper Assembly
    G06672513Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
