Special Tools
WARNING: This page is about a different variant/trim than selected.
| Tool | Tool number and name | Supersession | Application |
|---|---|---|---|
| MB990767 Front hub and flange yoke holder |
MB990767-01 | Fixing of the hub | |
| MB991618 Hub bolt remover |
General service tool | Removal of the hub bolt | |
| B992700 Lock nut chisel |
General service tool | Raising up the swaged part driveshaft nut | |
| MB991897 or MB992011 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Knuckle and tie-rod end ball joint disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also used to disconnect knuckle and tie-rod end ball joint.
|
|
| MB990241 Axle shaft puller
|
MB990241-01 or General service tool | Removal of the driveshaft | |
| MB991354 Puller body |
General service tool | ||
| MB991721 Slide hammer |
- | Removal of the output shaft | |
| MB991056 or MB991355 Knuckle arm bridge |
MB991056-01 |
|
|
| MB992250 Knuckle arm bridge attachment |
- | Removal of the hub
NOTE:
Replace this attachment with a guide of MB991355 and use them.
|
|
A, B: Front hub remover and installer C: Spacer |
MB990998-01 |
|
|
| MB991099 Oil seal installer guide |
- | Measurement of hub starting torque | |
| MB990326 Preload socket |
General service tool | ||
| MB990685 Torque wrench |
General service tool | ||
| MD998801 Remover |
- | Removal of the wheel bearing inner race (outside) | |
| MB992150 Oil seal installer |
- | Installation of the wheel bearing inner race (outside) | |
| MD998812 Installer cap |
- | ||
| MD998813 Installer |
- | ||
| MB990925 Bearing and oil seal installer set |
MB990925-01 or General service tool | Removal of the wheel bearing | |
| MB991388 Bush remover base |
- | Press-fitting of the dust cover | |
| MB991576 Base |
- | ||
| MB990890 Rear suspension bushing base |
MB990890-01 | Installation of the wheel bearing | |
| MD999528 Adapter |
- | ||
| MB991561 Boot band crimping tool |
MB991561 | EBJ boot (resin boot) band installation |

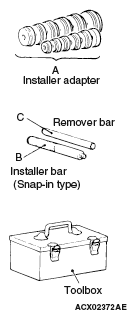

BEARING AND OIL SEAL INSTALLER SPECIFICATION
| Tool | Type | Tool number | O D mm (in) |
|---|---|---|---|
| A | MB990926 | 39.0 (1.54) | |
| MB990927 | 45.0 (1.77) | ||
| MB990928 | 49.5 (1.95) | ||
| MB990929 | 51.0 (2.00) | ||
| MB990930 | 54.0 (2.13) | ||
| MB990931 | 57.0 (2.24) | ||
| MB990932 | 61.0 (2.40) | ||
| MB990933 | 63.5 (2.50) | ||
| MB990934 | 67.5 (2.66) | ||
| MB990935 | 71.5 (2.81) | ||
| MB990936 | 75.5 (2.97) | ||
| MB990937 | 79.0 (3.11) | ||
| B | MB990938 | - | |
| C | MB990939 | - |
