Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

WARNING: This page is about a different variant/trim than selected.

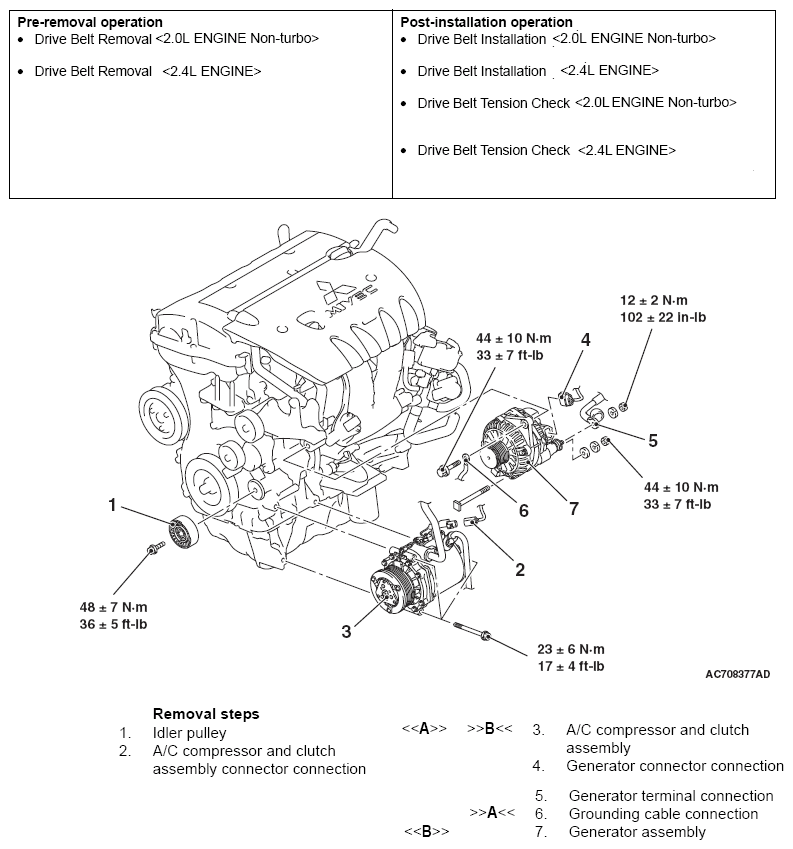

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification - 2.0L Engine Non-Turbo, 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
