Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > < Vehicles with WCM >.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION < Vehicles with WCM and ASC >).

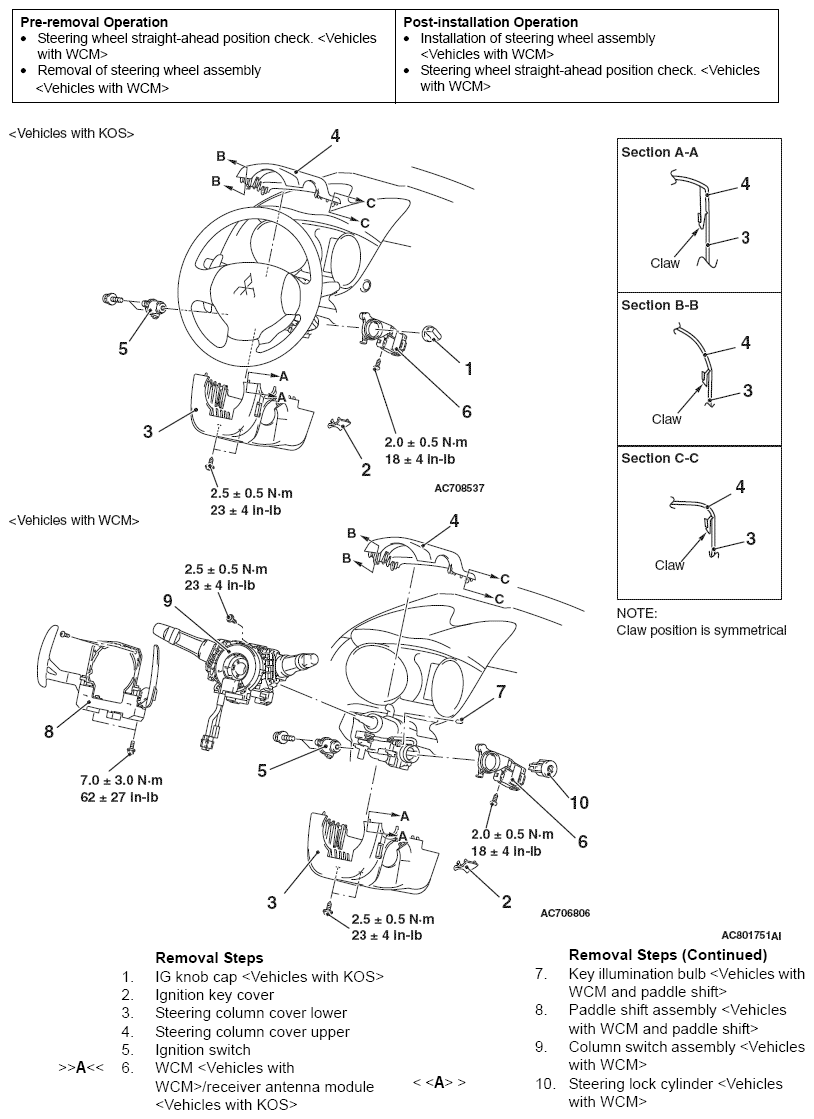

Fig 1: Exploded View Of Ignition Switch Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
