>> B << Heated Oxygen Sensor Installation

WARNING: This page is about a different variant/trim than selected.

Tighten the heated oxygen sensor to the specified torque by using special tool MB991953.

Tightening torque: 44 ± 5 N.m (33 ± 3 ft-lb)

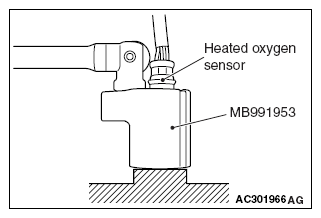

Fig 1: Installing Heated Oxygen Sensor
G09640973Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
