>> A << No. 2 Intake Air Temperature Sensor Installation

WARNING: This page is about a different variant/trim than selected.

Tighten the No. 2 intake air temperature sensor to the specified torque by using special tool MB992188.

Tightening torque: 14 ± 1 N.m (120 ± 13 in-lb)

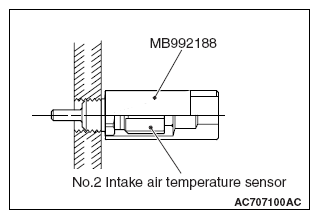

Fig 1: Installing No. 2 Intake Air Temperature Sensor Using Special Tool MB992188

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
