Intake Charge Pressure Control System Check
WARNING: This page is about a different variant/trim than selected.

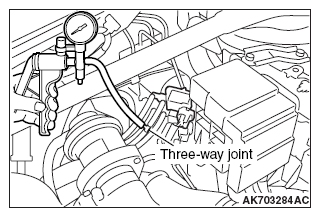

- Removing the black hose from the No. 1 turbocharger wastegate solenoid or the brown connector, connect three-way joint between the hose and the solenoid.
- Connect the pressurized type hand vacuum pump with the three-way joint.

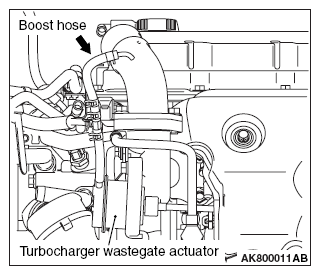

- Use the turbocharger wastegate actuator control boost nipple of air outlet fitting to remove the boost hose. Plug this nipple.CAUTION: Do not apply the pressure of 117 kPa or more to prevent the diaphragm damage.
- Blocking or releasing the boost hose end, apply the pressure. Check the pressurized state.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Engine state Boost hose end Normal state Stopped: Ignition switch in "ON" position Opened Pressure leaks Closed Pressure maintained Rapid racing Pressure leaks - Put the ignition switch in "LOCK" (OFF) position.

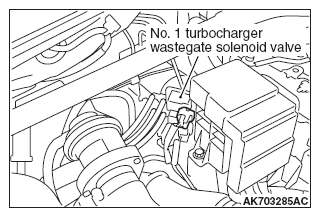

- Disconnect the connector of No. 1 turbocharger wastegate solenoid or the brown connector.
- Blocking or releasing the boost hose end, apply the pressure. Check the pressurized state. Plug the boost hose end while driving.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Engine state Boost hose end Normal state Stopped: Ignition switch in "ON" position Opened Pressure leaks Closed Pressure maintained 4, 000 r/min after warming up engine Pressure leaks NOTE: Unless the pressurized state is normal, the turbocharger wastegate actuator, turbocharger wastegate solenoid or the hose might have a malfunction.
