Special Tools

WARNING: This page is about a different variant/trim than selected.
Tool Tool number and name Supersession Application

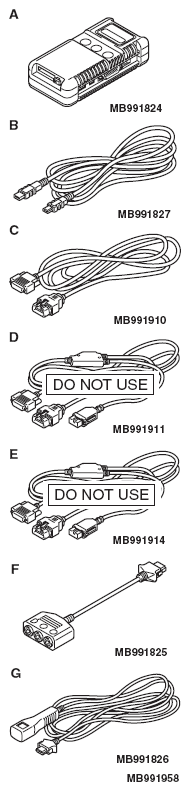

G09640929
 MB991958
Scan tool (M.U.T.-III sub assembly)
  1. MB991824 Vehicle communication interface (V.C.I.)
  2. MB991827 M.U.T.-III USB cable
  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M.U.T.-III main harness C (for Chrysler models only)
  6. MB991825 M.U.T.-III measurement adapter
  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Measurement of turbocharger supercharging pressure
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G09640930
 MB992274
Palm socket		 - Removal and installation of turbocharger compressor bracket
G09640931
 MB991614
Angle gauge		 General service tool Installation of turbocharger assembly coupling bolt and nut
G09640932
 MB991953
Oxygen sensor wrench		 MB991953-01 Removal and installation of heated oxygen sensor
G09640933
 MB992188
Fuel injection pipe wrench		 MB992188-01 Removal and installation of No. 2 air temperature sensor
