DTC U0169: Sunroof LIN timeout < Vehicles with sunroof >: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

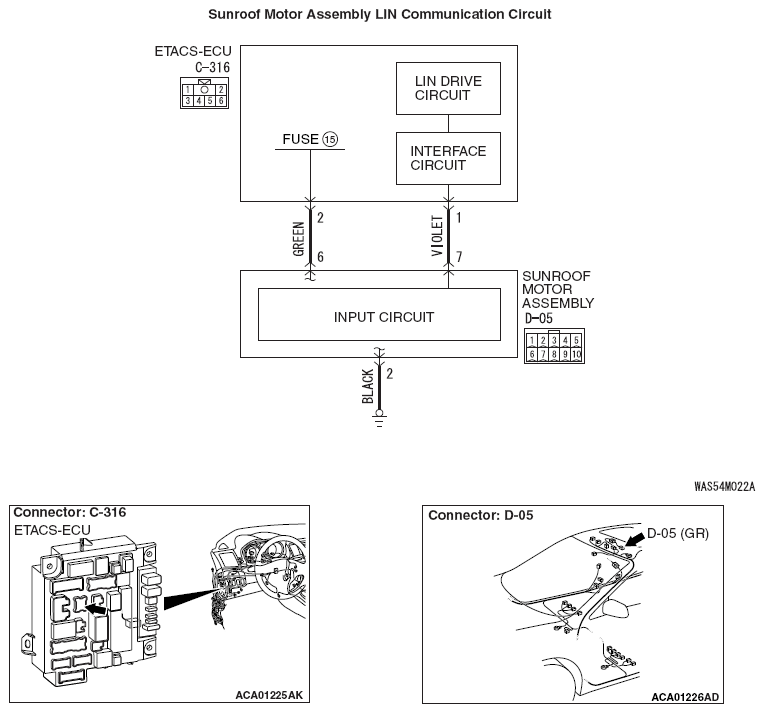

Fig 1: Sunroof Motor Assembly LIN Communication - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
