DTC U0215: P/W SW (DR) LIN timeout: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

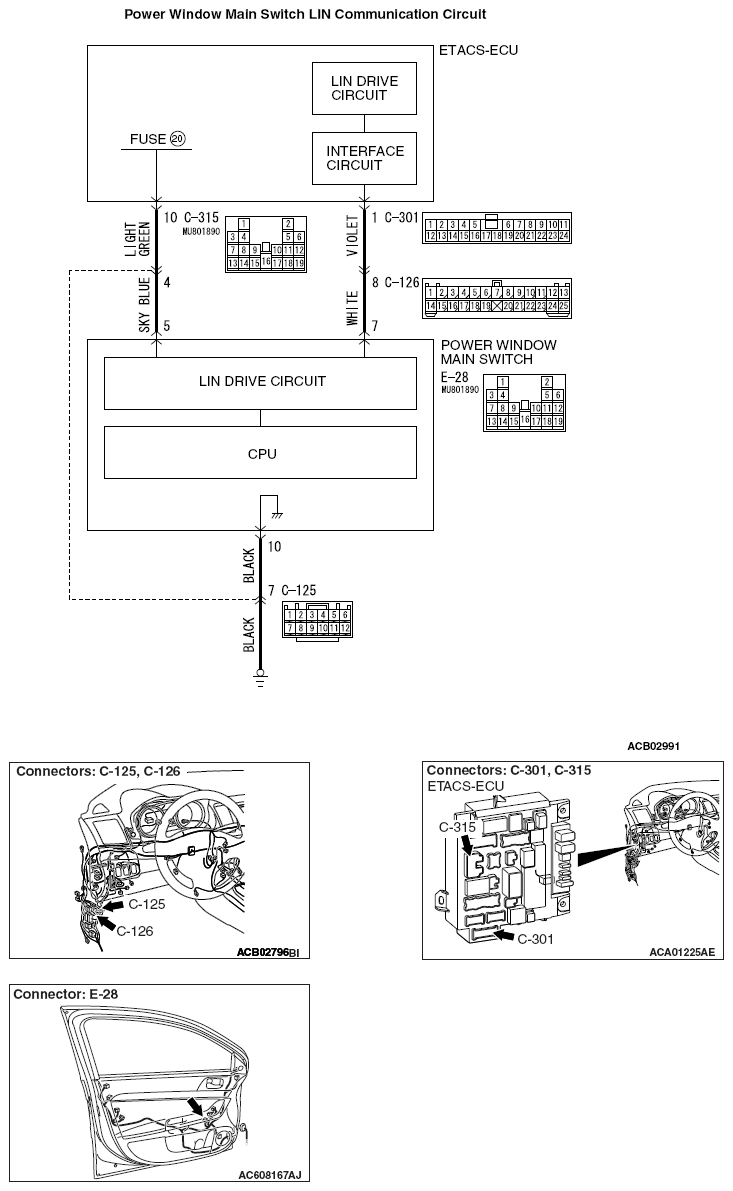

Fig 1: Power Window Main Switch LIN Communication - Circuit Diagram
G09630649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
