Lancer SPORTBACK: Notes

WARNING: This page is about a different variant/trim than selected.

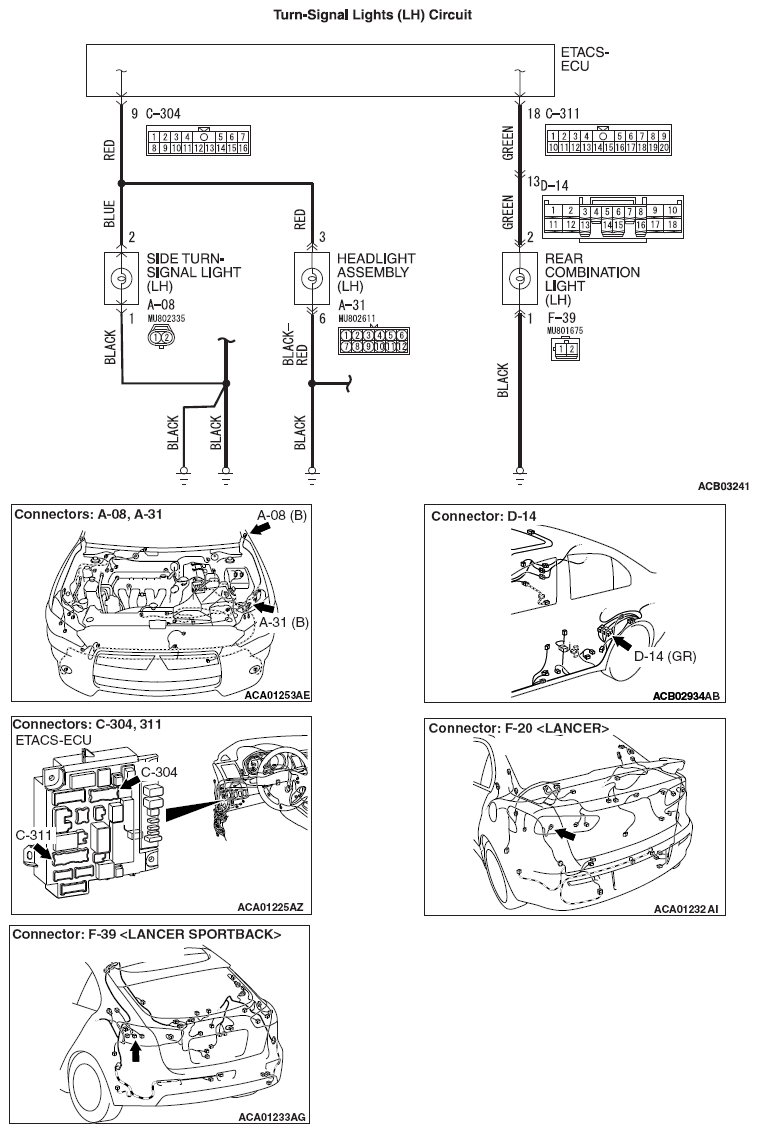

Fig 1: Turn-Signal Lights (LH) Circuit Diagram
G09629986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
