Repair Procedure Of Bracket A

WARNING: This page is about a different variant/trim than selected.
  1. Cut the damaged bracket A so that it has the larger dimension than the dimension shown in the figure from the mounting boss seating face.
  2. Smoothen the bracket cut surface using the sandpaper.

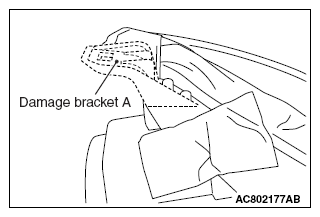

    Fig 1: Identifying Damaged Bracket A
    G09630063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

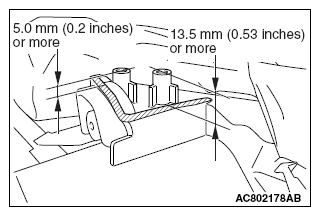

    Fig 2: Identifying Bracket Dimension From Mounting Boss Seating Face
    G09630064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Fix the repair bracket A to the headlight assembly using the tapping screw.

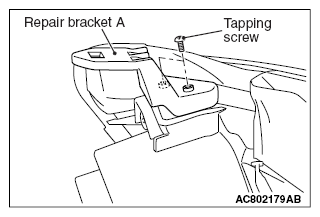

    Fig 3: Identifying Bracket A And Tapping Screw
    G09630065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
