Repair Procedure Of Bracket B

WARNING: This page is about a different variant/trim than selected.

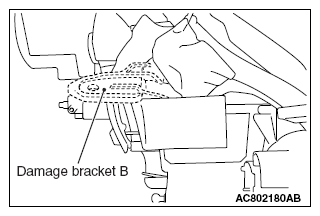

Cut off the damaged bracket B.

Fig 1: Identifying Damaged Bracket B
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

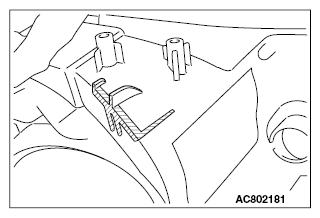

Remove the remaining bracket cut surface using the sandpaper.

Fig 2: Removing Remaining Bracket Cut Surface Using Sandpaper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

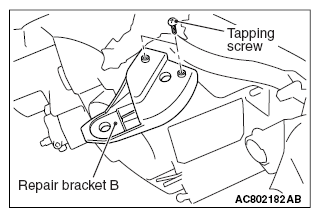

Fix the repair bracket B to the headlight assembly using the tapping screw.

Fig 3: Identifying Bracket B And Tapping Screw
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
