Repair Procedure Of Bracket C

WARNING: This page is about a different variant/trim than selected.

Cut the damaged bracket C so that it has the dimension shown in the figure.
Smoothen the bracket cut surface using the sandpaper.

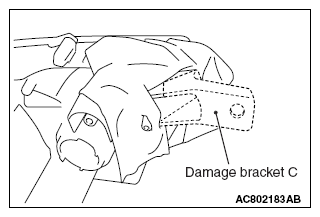

Fig 1: Identifying Damaged Bracket C
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

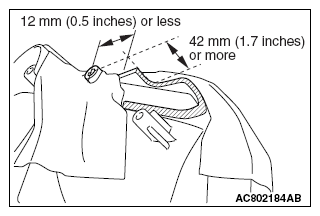

Fig 2: Identifying Dimension Of Bracket C
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fix the repair bracket C to the headlight assembly using the tapping screw.

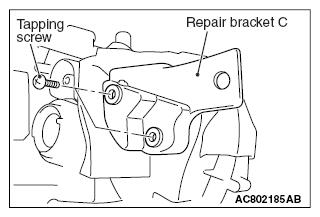

Fig 3: Identifying Repair Bracket C And Tapping Screw
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
