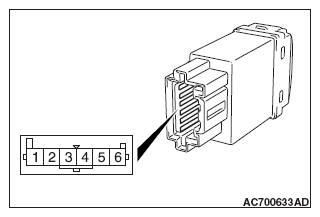

Headlight Leveling Switch Check
WARNING: This page is about a different variant/trim than selected.
| Measured terminals |
Switch position |
Resistance value Ω |
| 4 - 6 |
0 |
750 |
| 1 |
1, 110 |
| 2 |
1, 470 |
| 3 |
1, 830 |
| 4 |
2, 190 |
| 5 - 6 |
0, 1, 2, 3, 4 |
2, 810 |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
