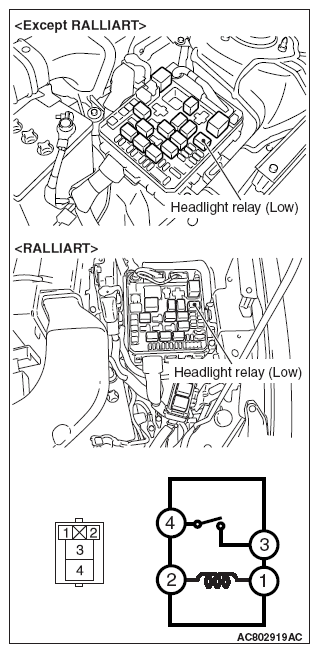

Headlight Relay (Low) Check (Vehicles With Discharge Headlight)
WARNING: This page is about a different variant/trim than selected.
| Battery voltage |
Terminal number |
Normal conditions |
| Not energized |
3 - 4 |
No continuity |
| With current supply [terminal 2 (+), terminal 1 (-)] |
Continuity exists (2 ohms or less) |
