Headlight Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

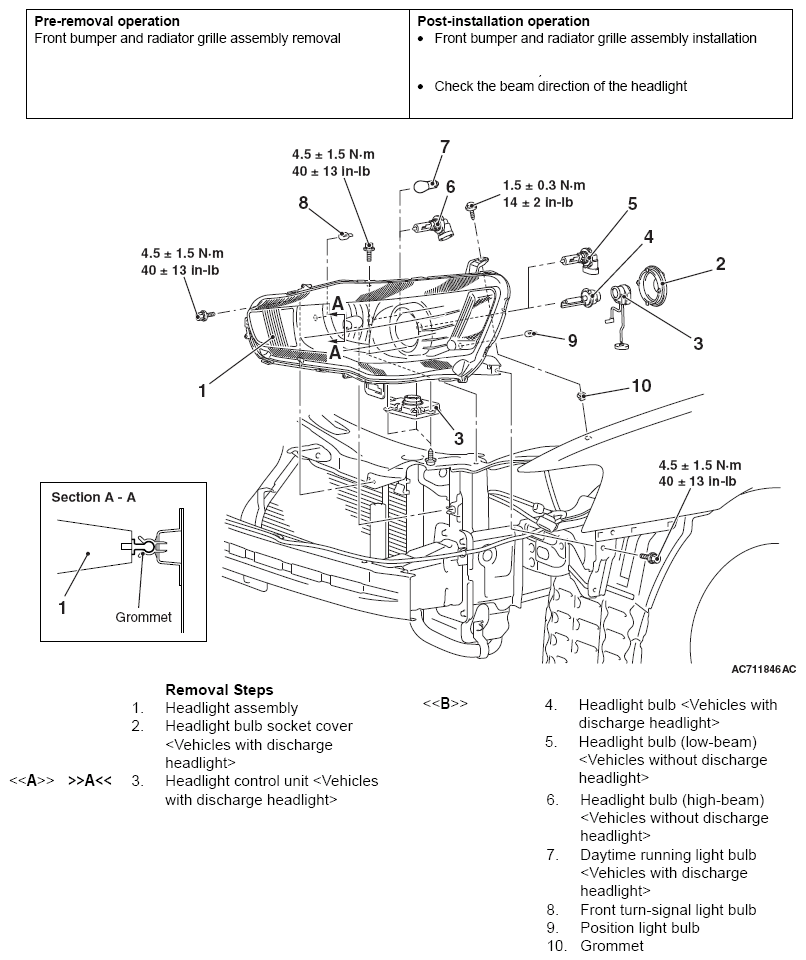

Fig 1: Exploded View Of Headlight Assembly With Torque Specifications
G09630046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
