Headlight Control Unit (Harness) Removal (Vehicles With Discharge Headlight)
WARNING: This page is about a different variant/trim than selected.

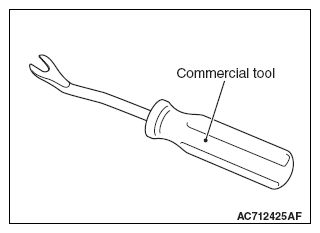

- As shown in the figure, use the commercial tool to remove it.

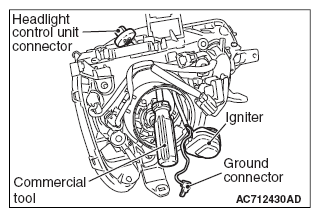

- To insert the tool available in the market into the headlight assembly from the opening at the ignitor side, firstly remove the headlight control unit, the socket cover, the ignitor and the ground connector.
- Using the commercial tool, make the resin washer sag to push up the harness above the resin washer.
- Pull out the harness from the headlight assembly.
