Column Switch (Switch Body Part) Continuity Check
WARNING: This page is about a different variant/trim than selected.
- Remove the lighting switch and wiper/washer switch.

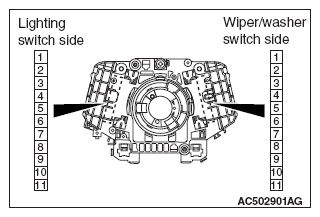

- Check that the continuity is present for the same terminal numbers of the column switch body connectors that remain on the steering column.
| Column switch body | Terminal number | Normal condition |
|---|---|---|
| Lighting switch side connector Wiper/washer switch side connector | 3 - 3 6 - 6 7 - 7 8 - 8 9 - 9 10 - 10 11 - 11 |
Continuity exists (2 Ω or less) |
