How To Initiate The Service Mode

WARNING: This page is about a different variant/trim than selected.
  1. While pressing the "MENU" button, press "A" portion (shown in the illustration) on the display briefly. Then press "B" portion for at least two seconds.

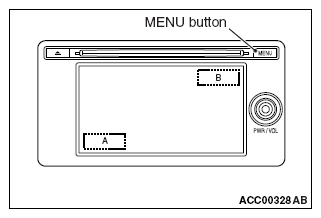

    Fig 1: Display - Pressing Menu Button
    G09630430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The service mode will be initiated. Then "Service" screen will be displayed.

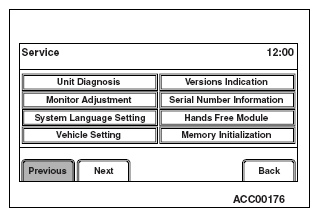

    Fig 2: Display - Service Screen (1 Of 2)
    G09630431Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

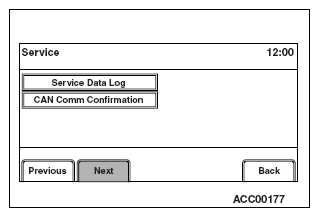

    Fig 3: Display - Service Screen (2 Of 2)
    G09630432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
