Diagnosis Mode (Vehicles With MMCS): Unlock

WARNING: This page is about a different variant/trim than selected.

Forcibly unlocks the 4-digit passcode that was stored by the security function.

NOTE: When the module is not locked by passcode, the "Unlock" button is displayed in gray.

Press "Unlock."

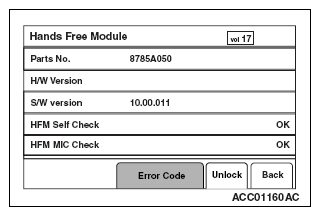

Fig 1: Display - Hands Free Module Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Yes" is selected, "Lock mode canceled" will be displayed and the passcode lock will be unlocked.
NOTE: When "No" is selected, the display returns to the "Hands Free Module" screen.

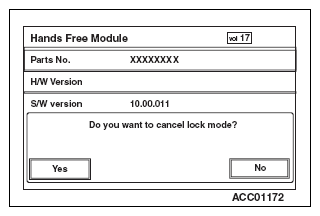

Fig 2: Display - Hands Free Module Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The display returns to the "Hands Free Module" screen after 4 seconds.

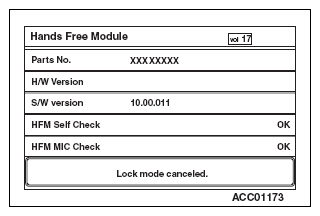

Fig 3: Display - Hands Free Module Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
