Illumination Check
WARNING: This page is about a different variant/trim than selected.

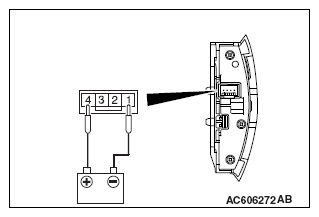

Apply the battery voltage to steering wheel voice control switch connector terminal No. 4 and 1, and check if the steering wheel audio remote control switch illuminates.
NOTE:
Make sure that the polarity is correct.
