USB Adapter Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the USB adapter. (Refer to USB ADAPTER REMOVAL AND INSTALLATION .)
  2. Check that the continuity exists between the front side terminals of USB adapter and rear side terminals of USB adapter.
    Front side terminal Rear side terminal Measurement value
    1 1 Continuity exists (2 Ω or less)
    2 2
    3 3
    4 4

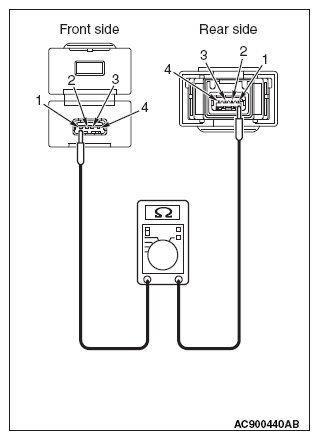

    Fig 1: Checking Continuity Between Front Side Terminals Of USB Adapter And Rear Side Terminals Of USB Adapter
    G09630500Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
