Methods For Pairing And Pairing Deletion With BLUETOOTH® Device (Using MULTIVISION Display): Notes

WARNING: This page is about a different variant/trim than selected.

As for vehicles with MMCS, "pairing" registration of the Bluetooth® device and deletion of paired device from hands free module can be done by touch panel operation on the multivision display.

NOTE:
  • For detail of the hands free module, you can see to access via the MITSUBISHI MOTORS web site. Please read and agree the "Warning about Links to the Web Sites of Other Companies" because it connects other than MITSUBISHI MOTORS web site. http://www.mitsubishi-motors.com/en/products/index.html
  • Some Bluetooth® devices (cellular phone and music player) may not be compatible with the hands free module.
  • A maximum of seven Bluetooth® devices can be registered.
  • This system cannot be used when a battery of Bluetooth® devices was exhausted.

DISPLAY THE PAIRING SCREEN.

  1. Press "SETTINGS" button.
  2. Select "System" on "SET" screen.
  3. Select "Pairing" on "System" screen.

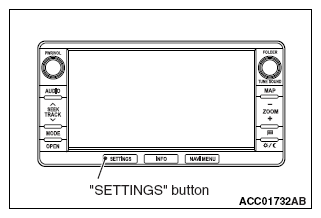

    Fig 1: Display - Pressing Settings Button
    G09630484Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. "Pairing" screen will be displayed.

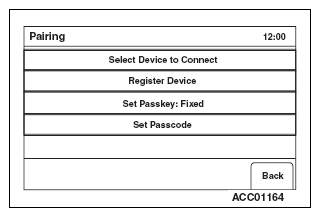

    Fig 2: Display - Pairing Screen
    G09630485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
