Steering Wheel Audio Remote Control Switch Check

WARNING: This page is about a different variant/trim than selected.

Use an ohmmeter to measure the resistance value between the terminal.

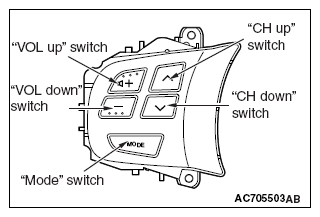

Fig 1: Identifying Steering Wheel Audio Remote Control Switch (Ralliart)
G09630418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Switch Position Tester Connection Measurement Value
No push 2 - 3 Approximately 3.1 kΩ
2 - 4 Approximately 71 kΩ
"Mode" switch Approximately 270 Ω
"CH up" switch Approximately 740 Ω
"CH down" switch Approximately 1.3 kΩ
"VOL up" switch Approximately 2.1 kΩ
"VOL down" switch Approximately 3.1 kΩ

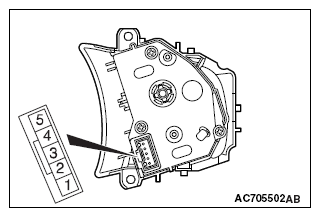

Fig 2: Identifying Steering Wheel Audio Remote Control Switch Connector Terminals (Ralliart)
G09630419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
