>> A << Tie-Rod Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not tighten the vise strongly in order not to damage the rack bar.
  1. Wrap rack bar with cloth in order not to damage, and fix the rack bar with a vise.
  2. Use special tool variable spanner (MB992249) to tighten the tie-rod to the specified torque.

    Tightening torque: 89 ± 9 N.m

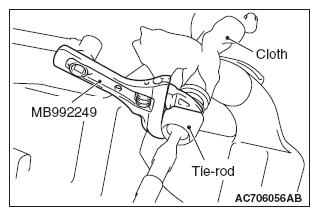

    Fig 1: Identifying Special Tool, Tie-Rod And Cloth
    G09651021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
