>> B << Band Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Secure the rack housing, and firmly crimp the bellows band by the bellows band clipping tool (special tool: MB992209).
  • Crimp the bellows band securely until the special tool (MB992209) contacts the stopper.
  1. Using the special tool (MB992209), crimp the bellows band.

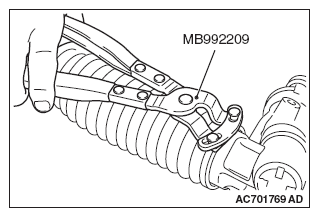

    Fig 1: Crimping Bellows Band Using Special Tool
    G09651022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that the crimping width of the band (A) is within the range of the standard value.

    Standard value (A): 2.4 - 2.8 mm (0.09 - 0.11 in)

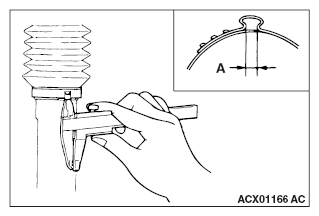

    Fig 2: Checking Crimping Width Of Band
    G09651023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
