>> C << Tie-Rod End/Jam Nut Installation
WARNING: This page is about a different variant/trim than selected.

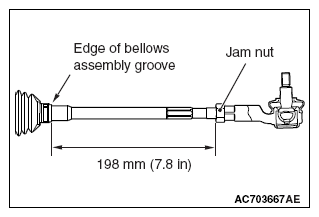

Screw in the tie-rod to the length shown in the figure, and hand-tighten the locking nut.
NOTE:
Install the steering gear and linkage to the body, adjust the toe-in, and then tighten the jam nut to the specified torque.
