>> A << Cooler Tube Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Install by aligning the mating marks of cooler tube assembly and return tube assembly.

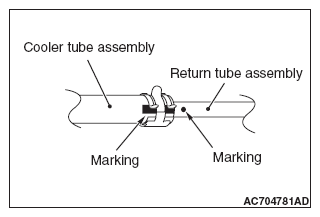

Fig 1: Identifying Mating Marks Of Cooler Tube Assembly And Return Tube Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
