>> A << Suction Hose Installation

WARNING: This page is about a different variant/trim than selected.

Install the suction hose with its marking located as shown in the figure.

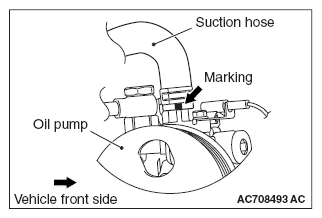

Fig 1: Locating Suction Hose With Marking

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
