<< B >> Driver's Air Bag Module Connector Disconnection

WARNING: This page is about a different variant/trim than selected.

Slide the outer housing of the driver's air bag module connector in the arrow direction shown and disconnect the connector.

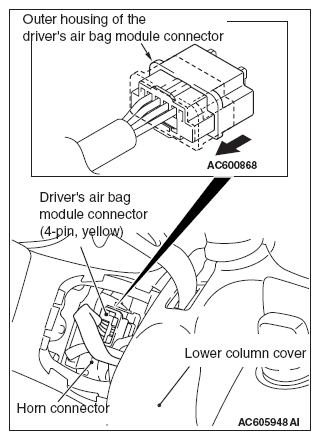

Fig 1: Identifying Driver Air Bag Module Connector
G09651000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
