<< B >> Select Cable Disconnection (Transaxle Side)/Gearshift Cable Disconnection (Transaxle Side)/Gearshift Link Clip Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be careful not to pull out the cable directly to disconnect the joint because the cable could be broken.

Use the clip remover (special tool: MB992277), and disconnect the joint.

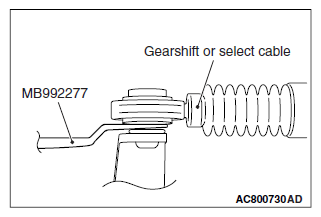

Fig 1: Removing Gearshift Joint Using Special Tool MB992277
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Push up the claws of the gearshift link clip using a screwdriver, etc., and then remove the gearshift link clip from the bracket together with the cables.

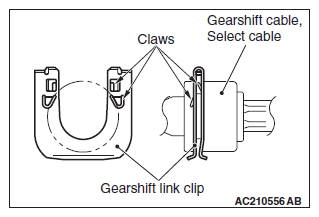

Fig 2: Identifying Gearshift Cable, Link Clip And Claws
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
