Connector Engagement Inspection

Required Special Tool:

MB991219: Inspection Harness (contained in MB991223 Test Harness)

Use special tool, MB991219 to inspect the engagement of the male pins and female pins. [Pin drawing force: 1 N (0.2 pound) or more]

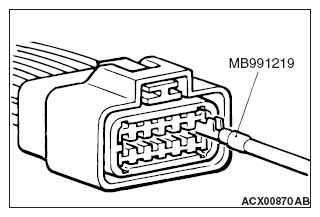

Fig 1: Inspecting Engagement Of Male And Female Pins

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
