Transaxle Oil Level Check

  1. Remove the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
  2. Remove the oil filler plug and gasket.

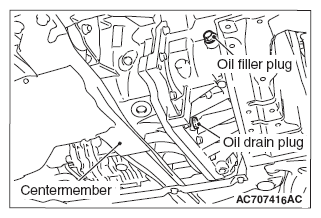

    Fig 1: Identifying Centermember, Oil Filler Plug And Oil Drain Plug
    G09639559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check that the oil level is just below the lower edge of the oil filler plug hole.
  4. Check that the oil is not excessively foul and has moderate viscosity.
  5. Install the oil filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  6. Install the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)

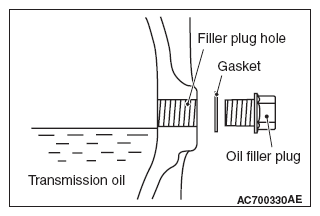

    Fig 2: Identifying Oil Filler Plug
    G09639560Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
