Transfer Oil Check

  1. Remove the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
  2. Remove the filler plug and gasket.

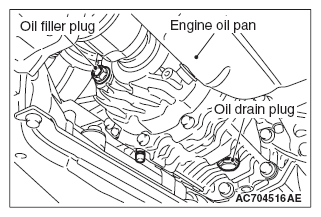

    Fig 1: Identifying Drain Plug, Oil Filler Plug And Engine Oil Pan
    G09639568Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check that the oil level is not 14 mm (0.6 inch) below the bottom of the oil filler plug hole.
  4. Check that the oil is not excessively foul and has moderate viscosity.
  5. If the oil level is not in between the upper limit and the lower limit, refill the specified oil to the bottom of the oil filler plug hole.

    Brand name: DiaQueen LSD gear oil

  6. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  7. Install the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
    Fig 2: Checking Transfer Oil Level/Change
    G09639569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
