Cruise Control System < M/T >

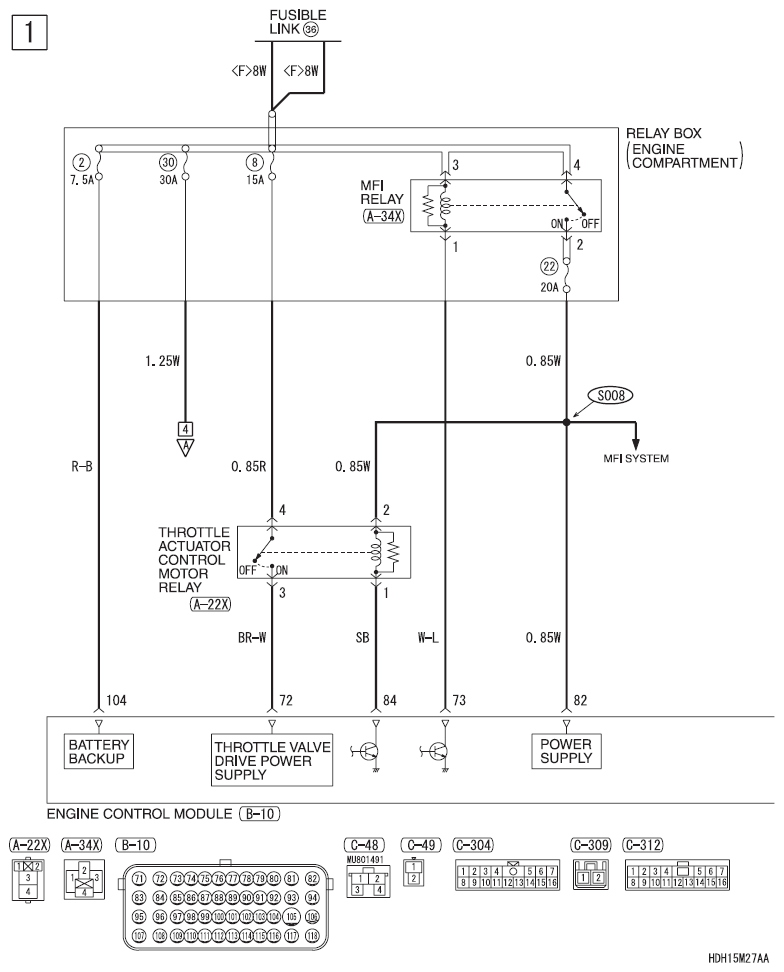

Fig 1: Cruise Control System (M/T) - Circuit Diagram (1 Of 6)
G09620962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

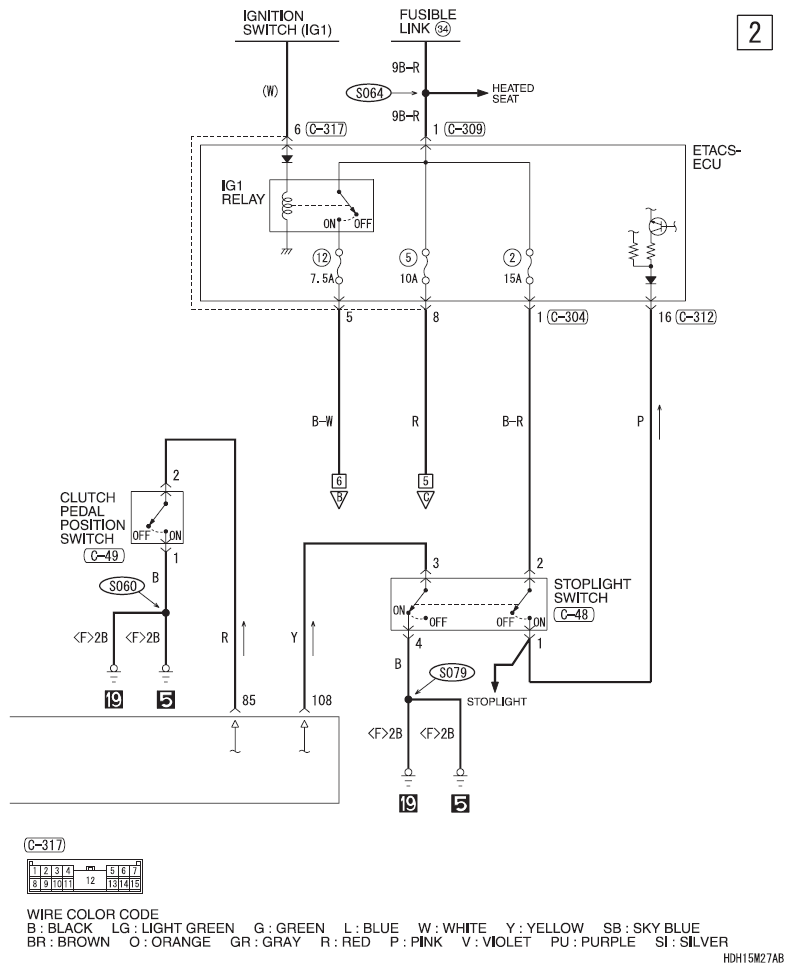

Fig 2: Cruise Control System (M/T) - Circuit Diagram (2 Of 6)
G09620963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

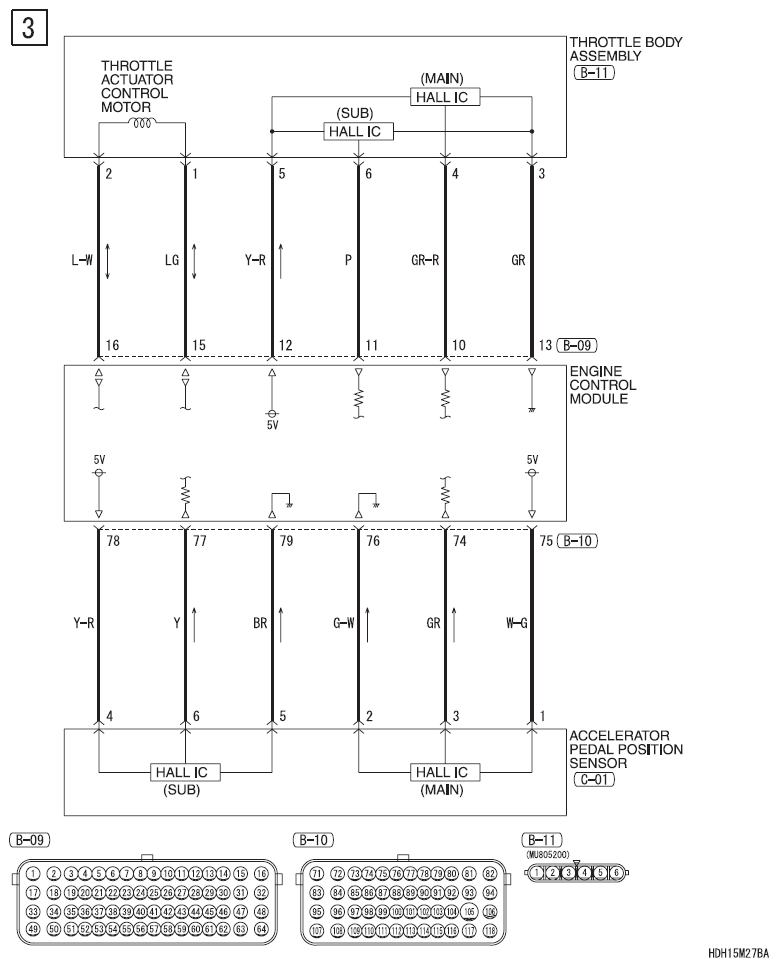

Fig 3: Cruise Control System (M/T) - Circuit Diagram (3 Of 6)
G09620964Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Cruise Control System (M/T) - Circuit Diagram (4 Of 6)
G09620965Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

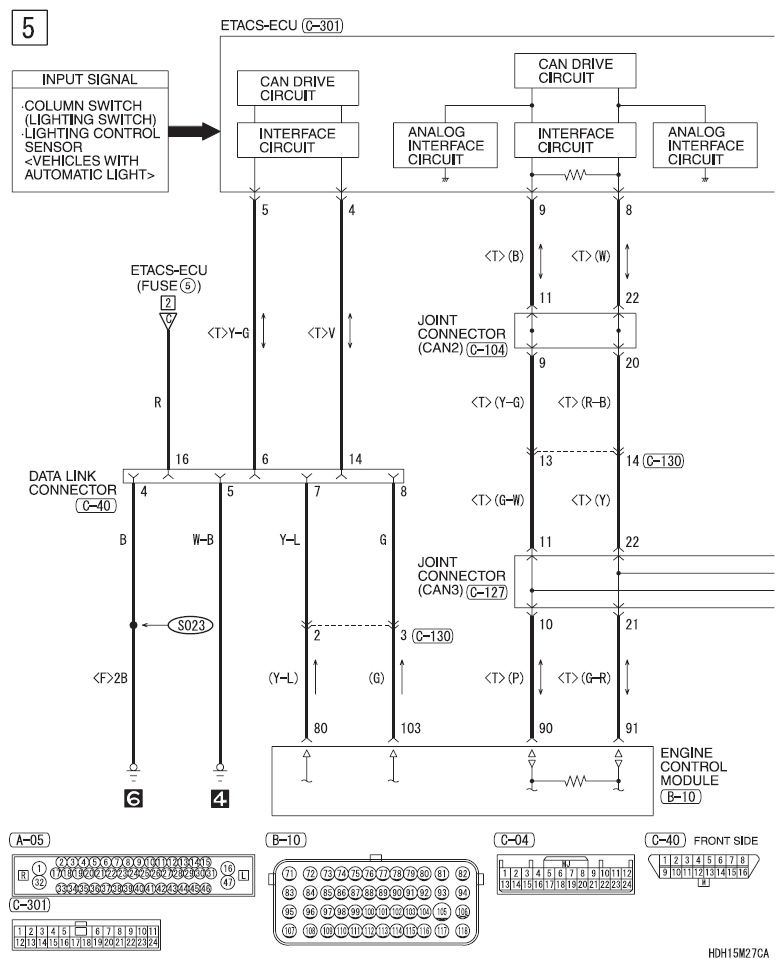

Fig 5: Cruise Control System (M/T) - Circuit Diagram (5 Of 6)
G09620966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

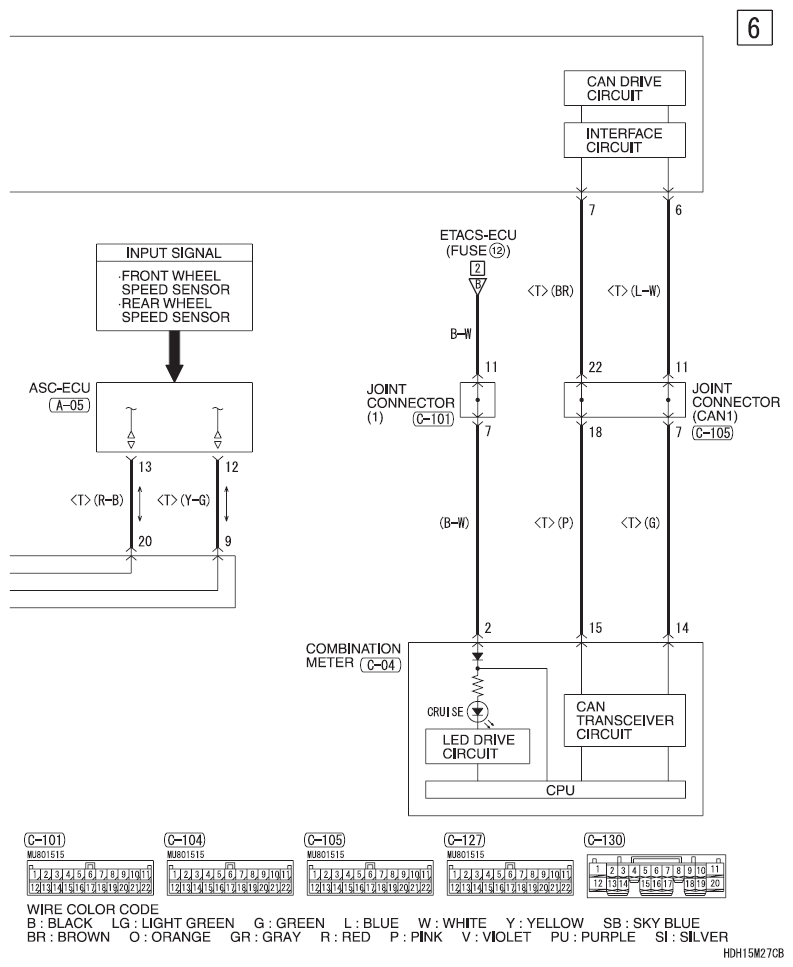

Fig 6: Cruise Control System (M/T) - Circuit Diagram (6 Of 6)
G09620967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
