Cruise Control System < TC-SST >

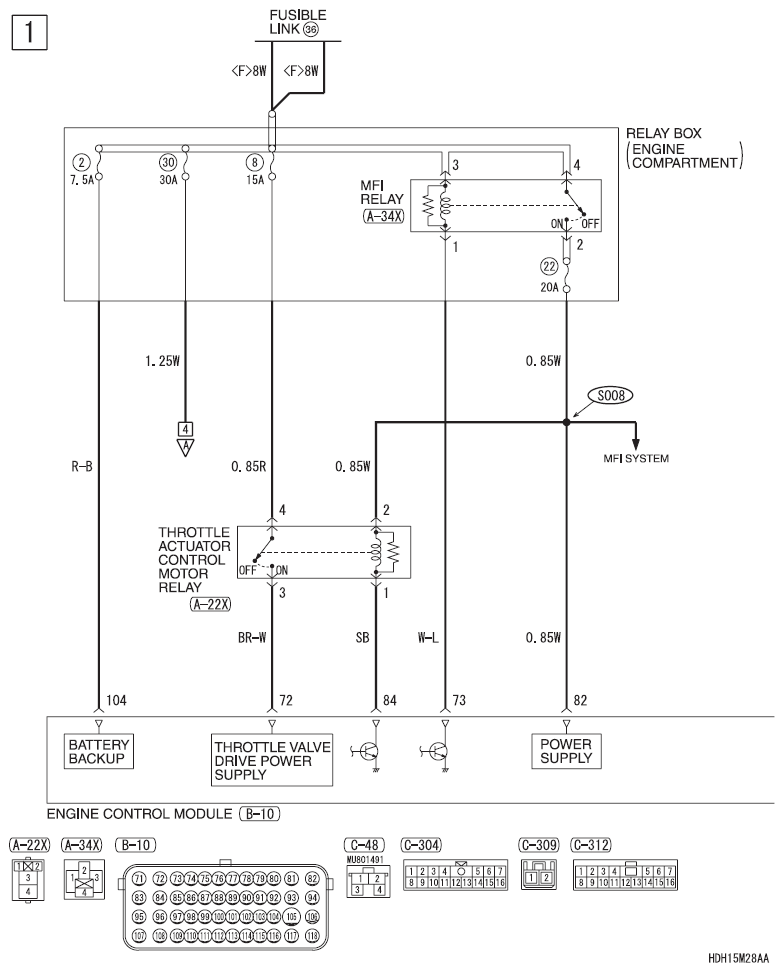

Fig 1: Cruise Control System (TC-SST) - Circuit Diagram (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

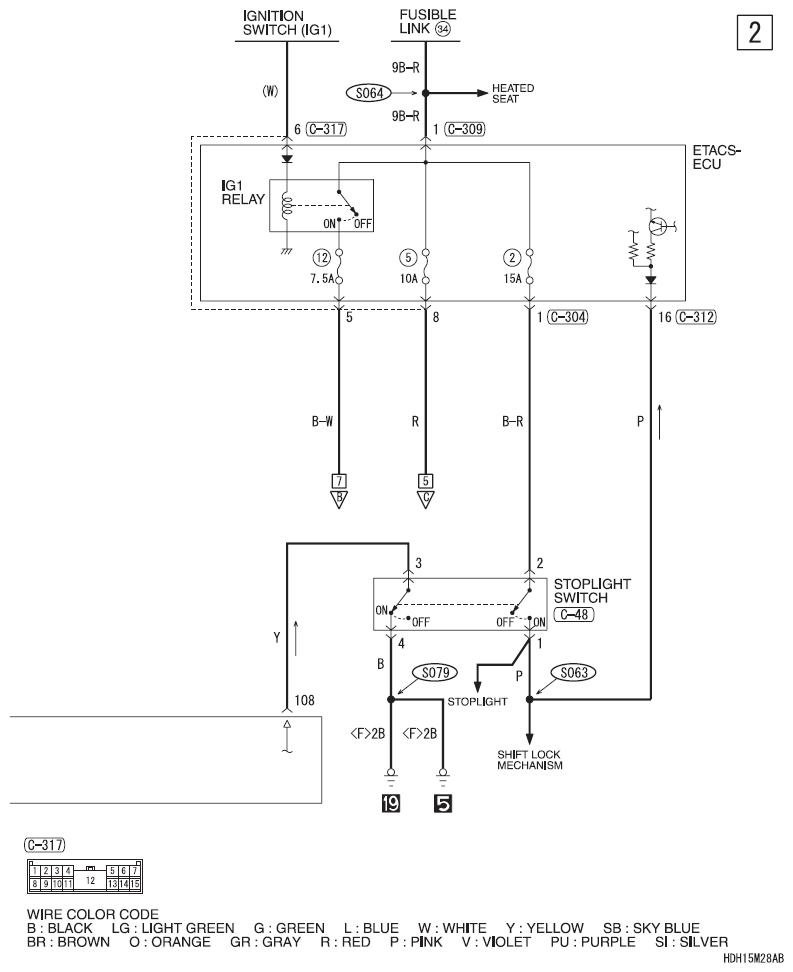

Fig 2: Cruise Control System (TC-SST) - Circuit Diagram (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

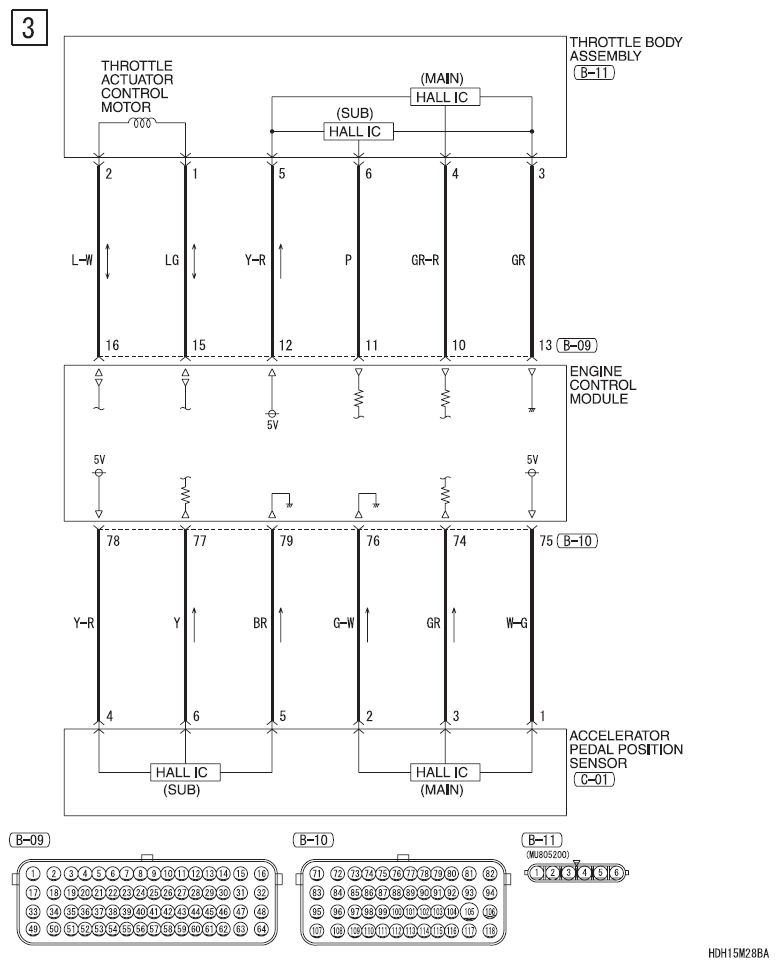

Fig 3: Cruise Control System (TC-SST) - Circuit Diagram (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

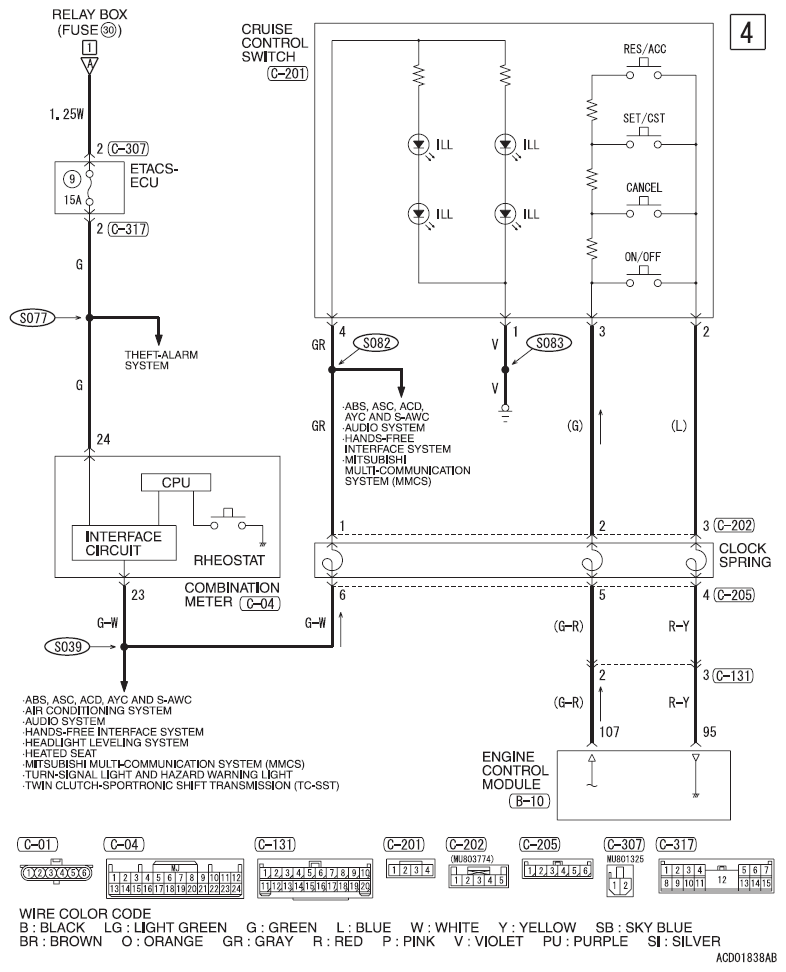

Fig 4: Cruise Control System (TC-SST) - Circuit Diagram (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

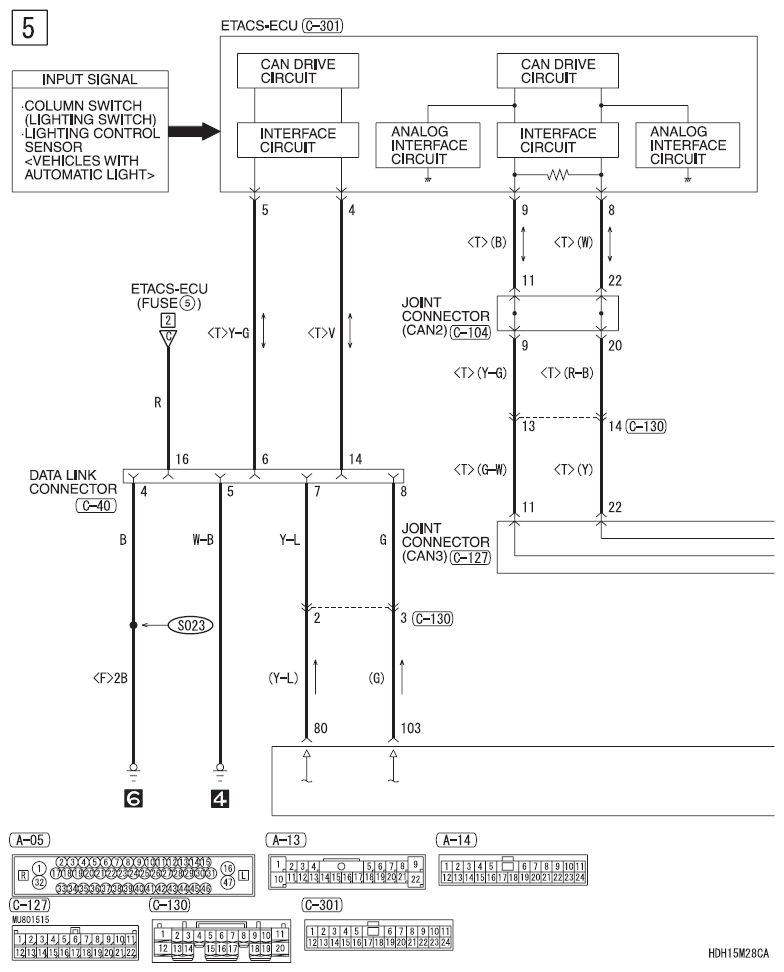

Fig 5: Cruise Control System (TC-SST) - Circuit Diagram (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

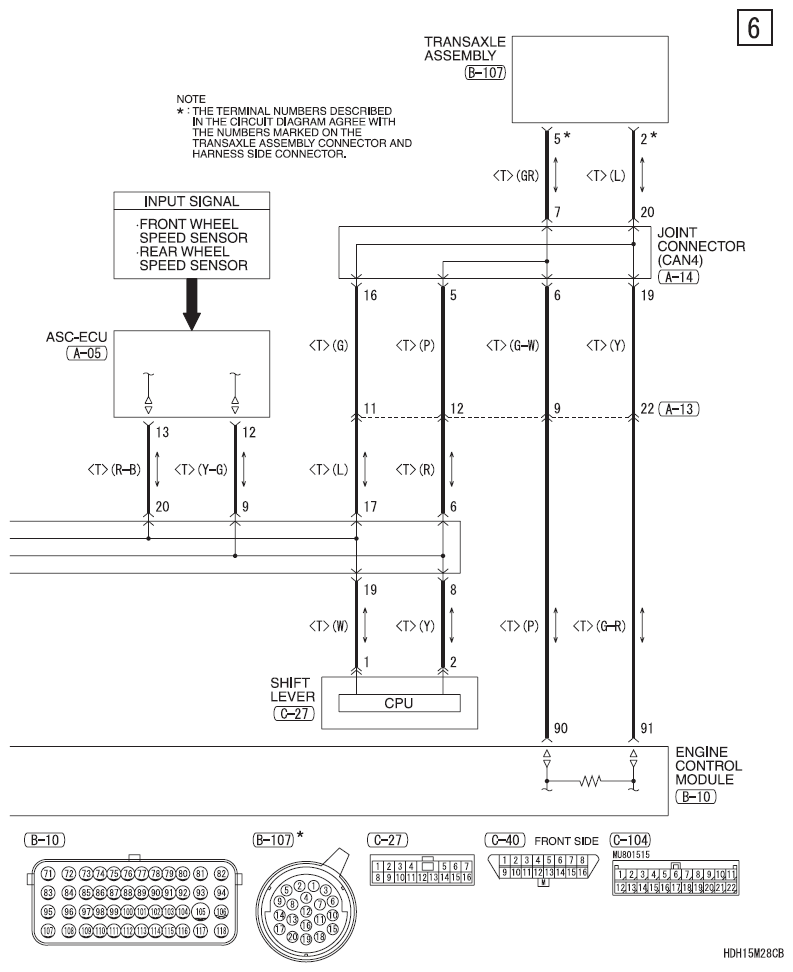

Fig 6: Cruise Control System (TC-SST) - Circuit Diagram (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

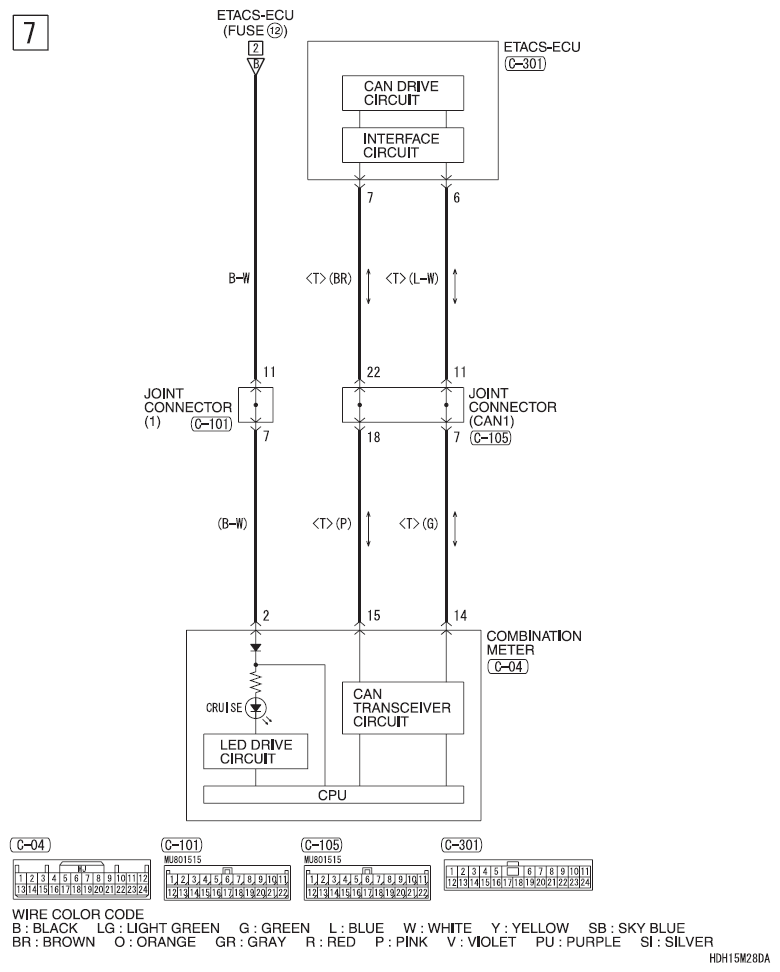

Fig 7: Cruise Control System (TC-SST) - Circuit Diagram (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
