Power Windows

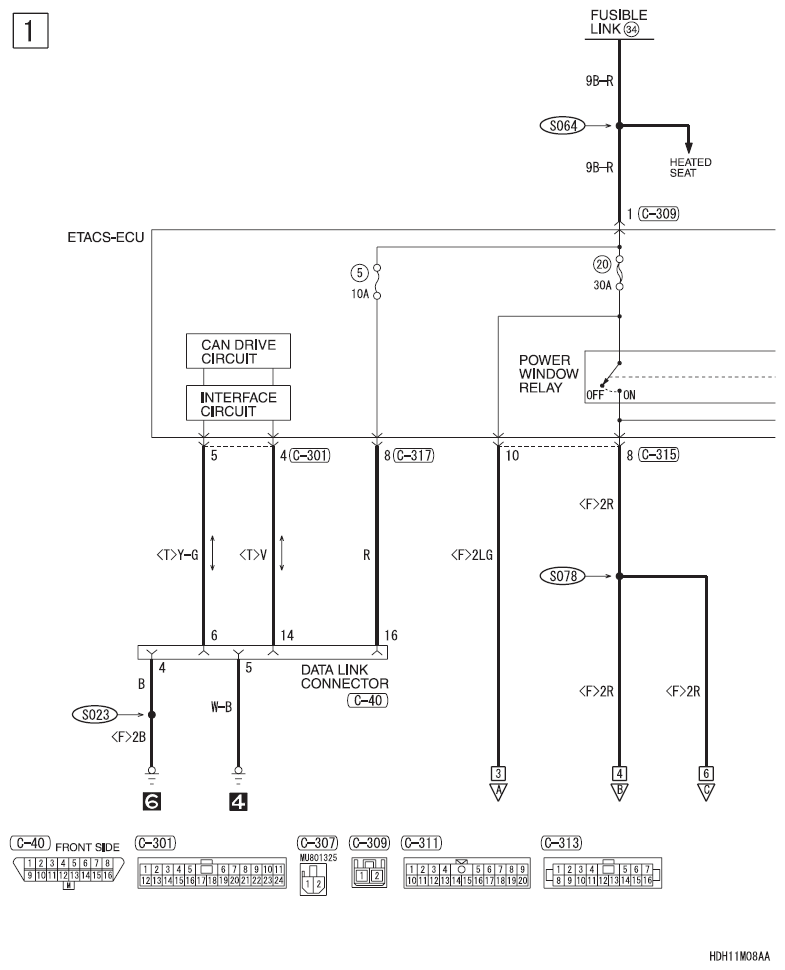

Fig 1: Power Windows - Circuit Diagram (1 Of 6)

G09620842

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

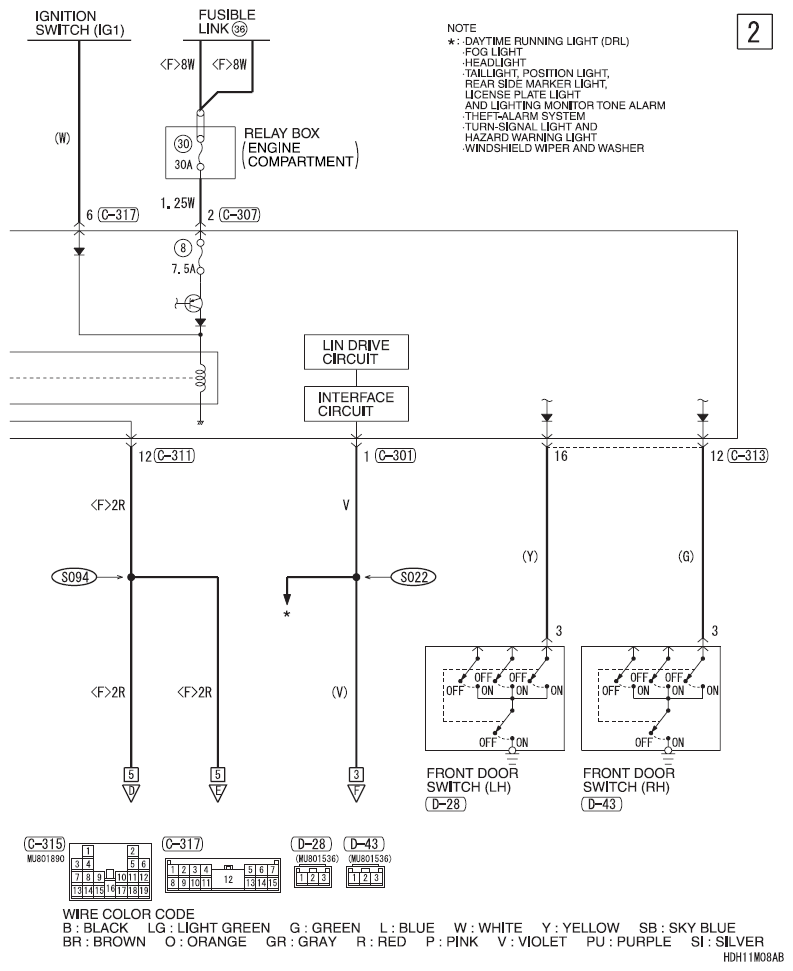

Fig 2: Power Windows - Circuit Diagram (2 Of 6)

G09620843

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

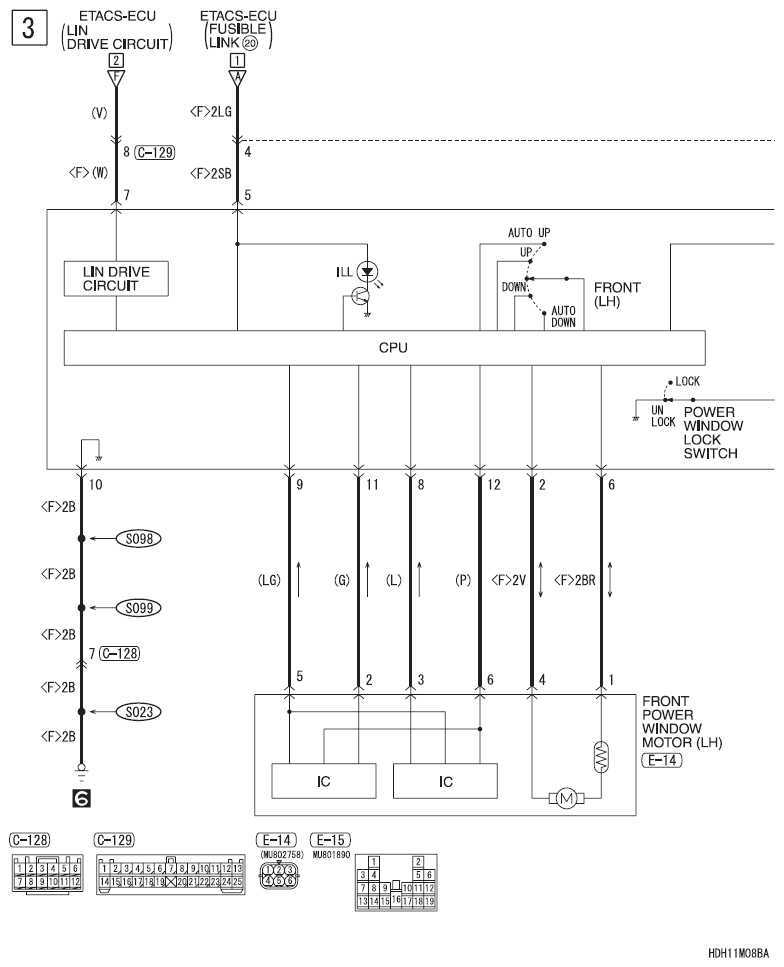

Fig 3: Power Windows - Circuit Diagram (3 Of 6)

G09620844

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

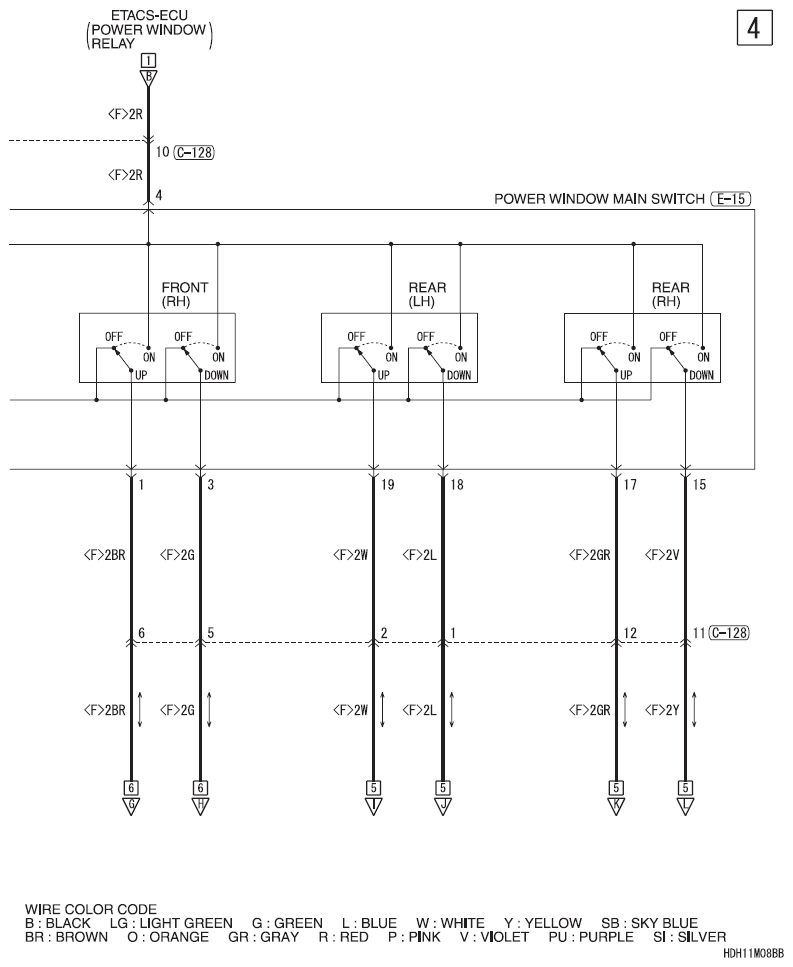

Fig 4: Power Windows - Circuit Diagram (4 Of 6)

G09620845

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

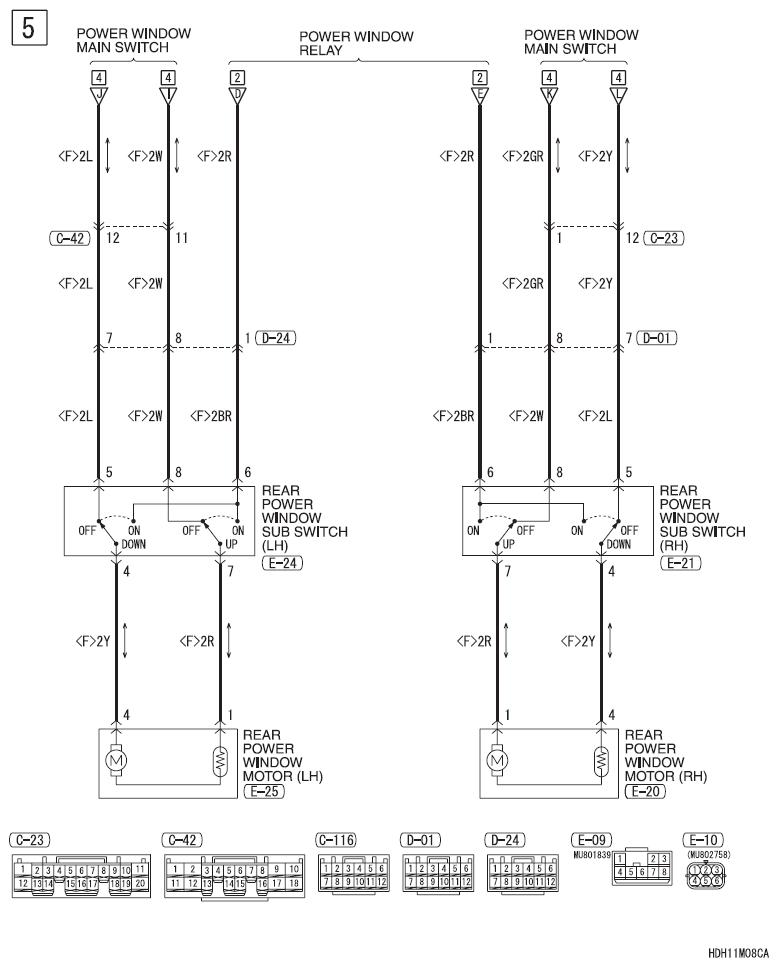

Fig 5: Power Windows - Circuit Diagram (5 Of 6)

G09620846

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

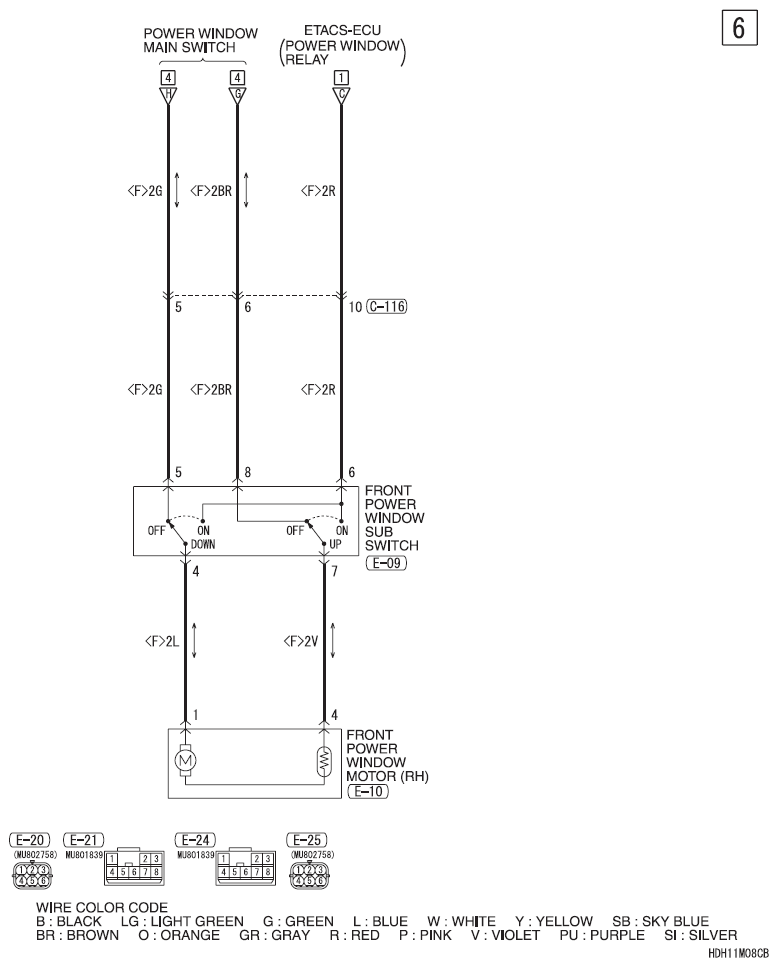

Fig 6: Power Windows - Circuit Diagram (6 Of 6)

G09620847

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
