Starting System < TC-SST >

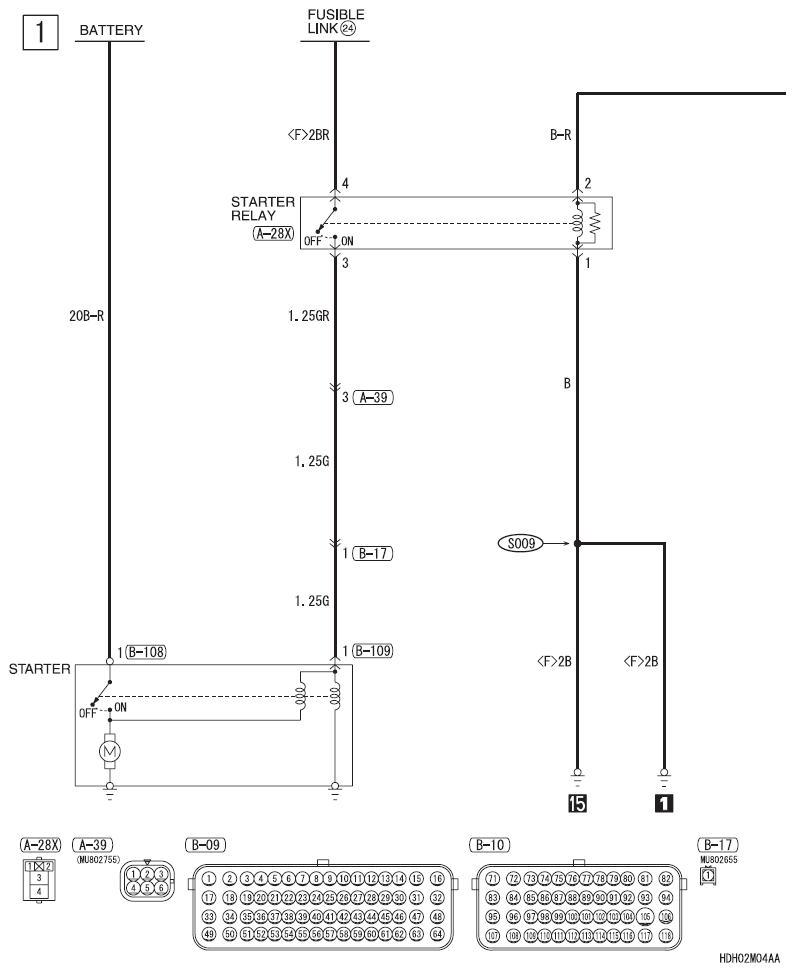

Fig 1: Starting System (TC-SST) - Circuit Diagram (1 Of 2)
G09620731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

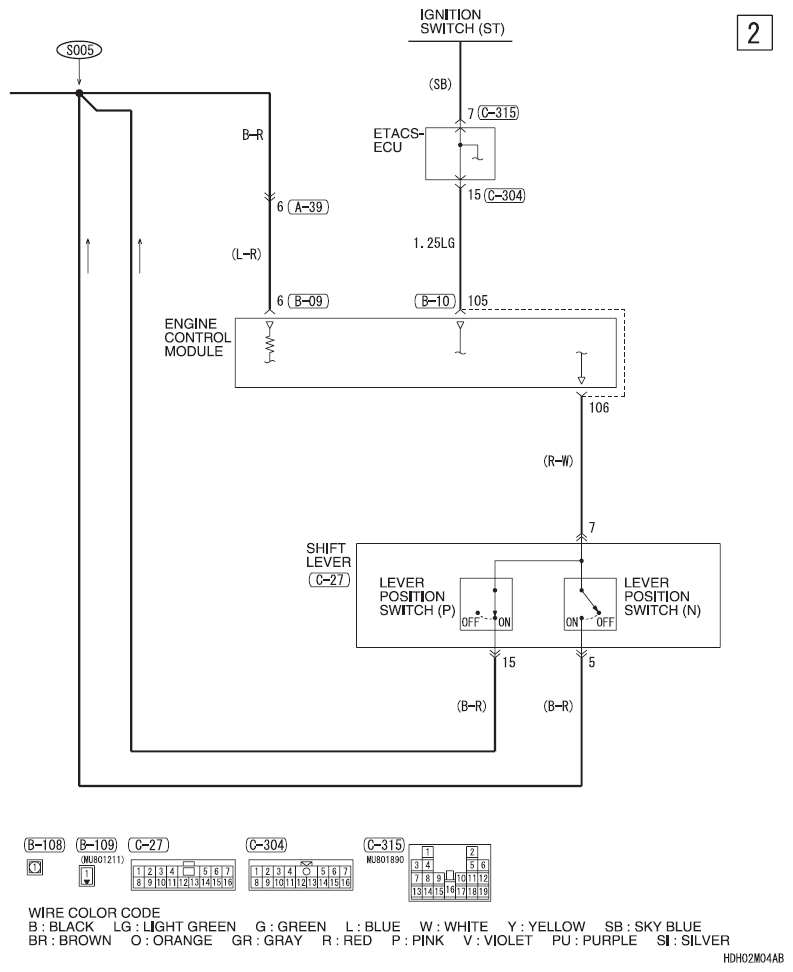

Fig 2: Starting System (TC-SST) - Circuit Diagram (2 Of 2)
G09620732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
