Theft-Alarm System

Fig 1: Theft-Alarm System - Circuit Diagram (1 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Theft-Alarm System - Circuit Diagram (2 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

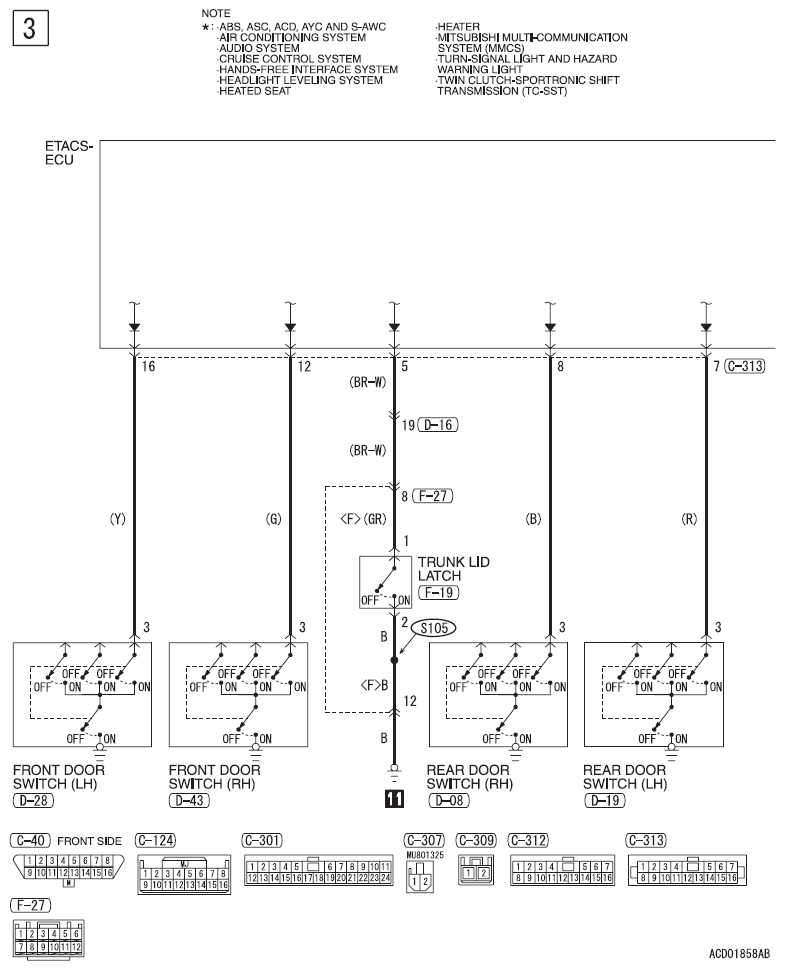

Fig 3: Theft-Alarm System - Circuit Diagram (3 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

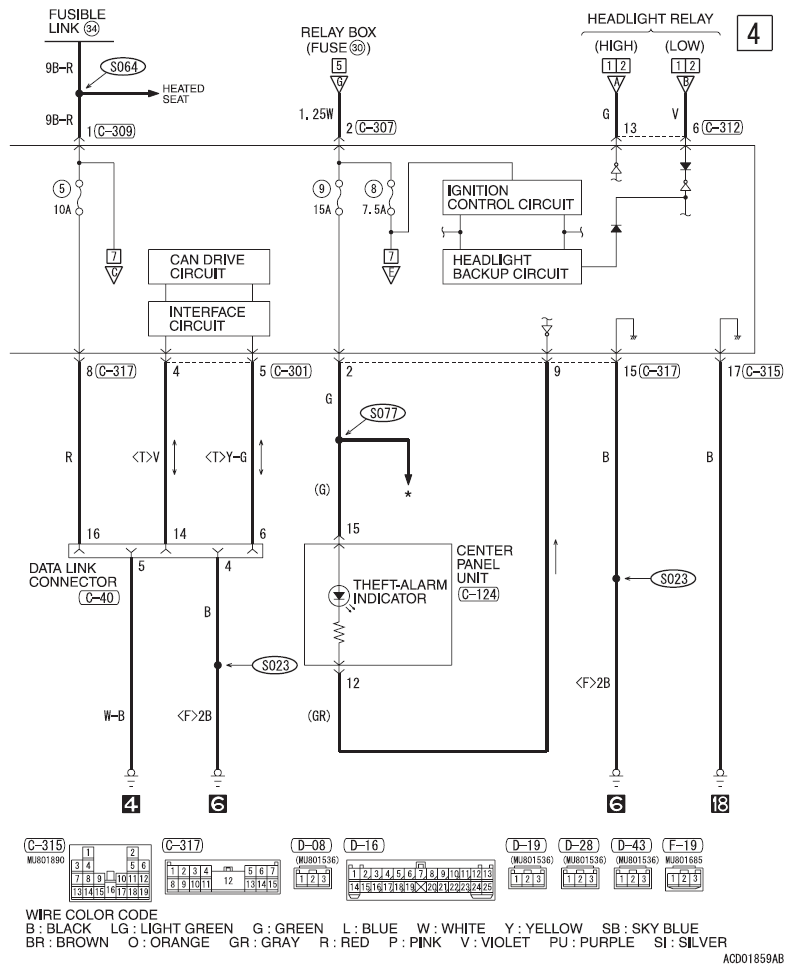

Fig 4: Theft-Alarm System - Circuit Diagram (4 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

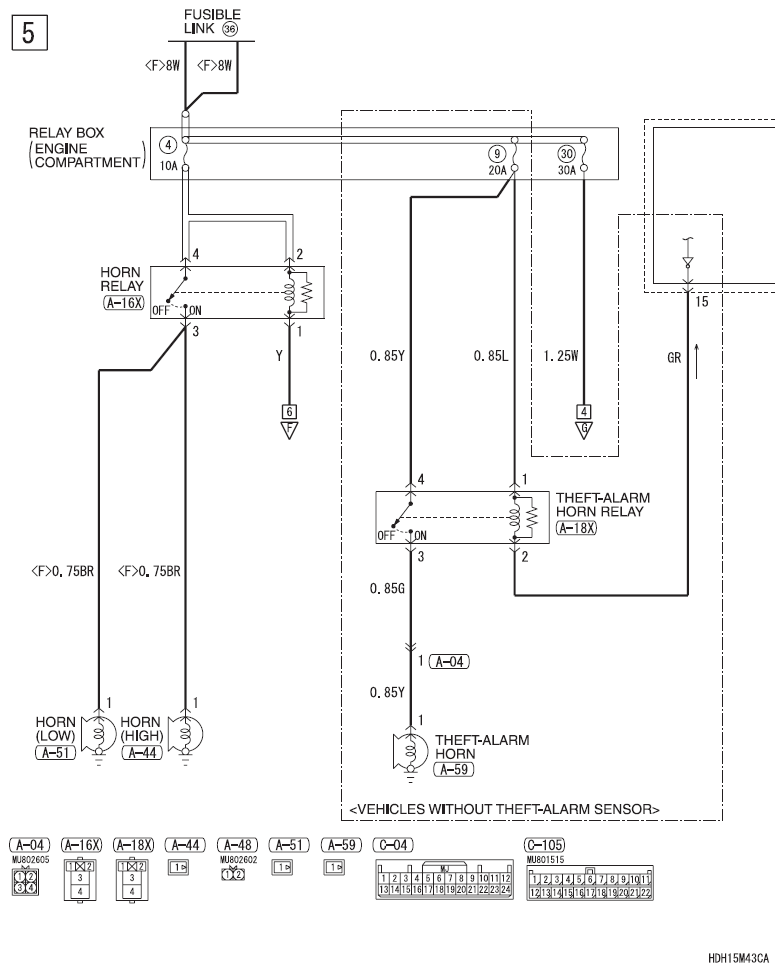

Fig 5: Theft-Alarm System - Circuit Diagram (5 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

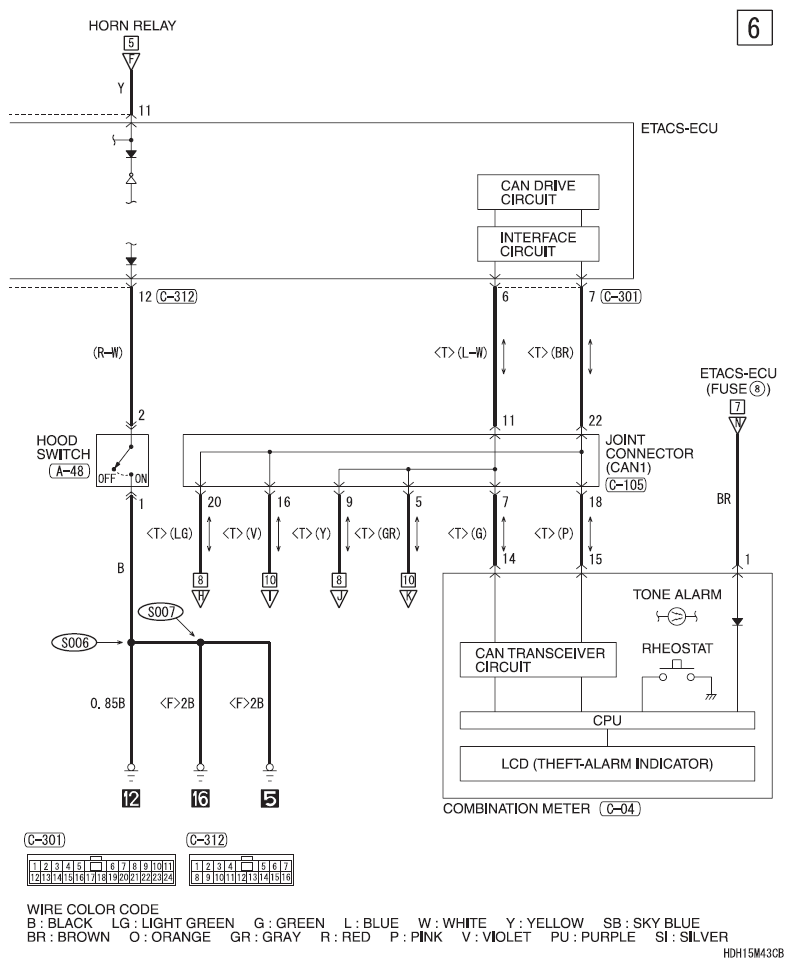

Fig 6: Theft-Alarm System - Circuit Diagram (6 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

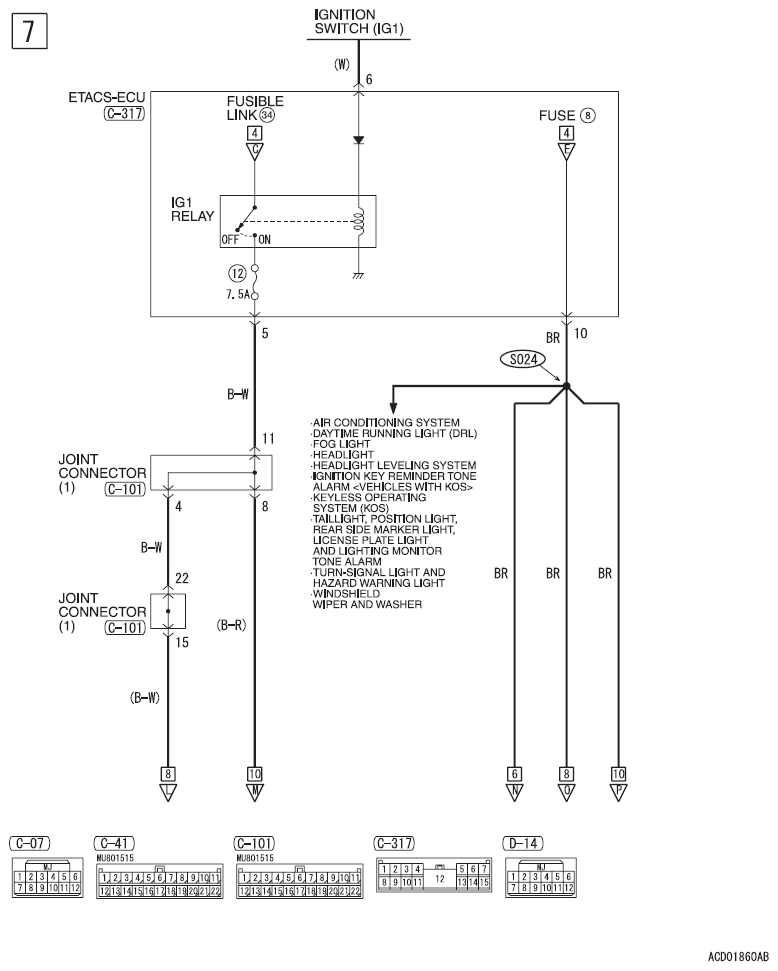

Fig 7: Theft-Alarm System - Circuit Diagram (7 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

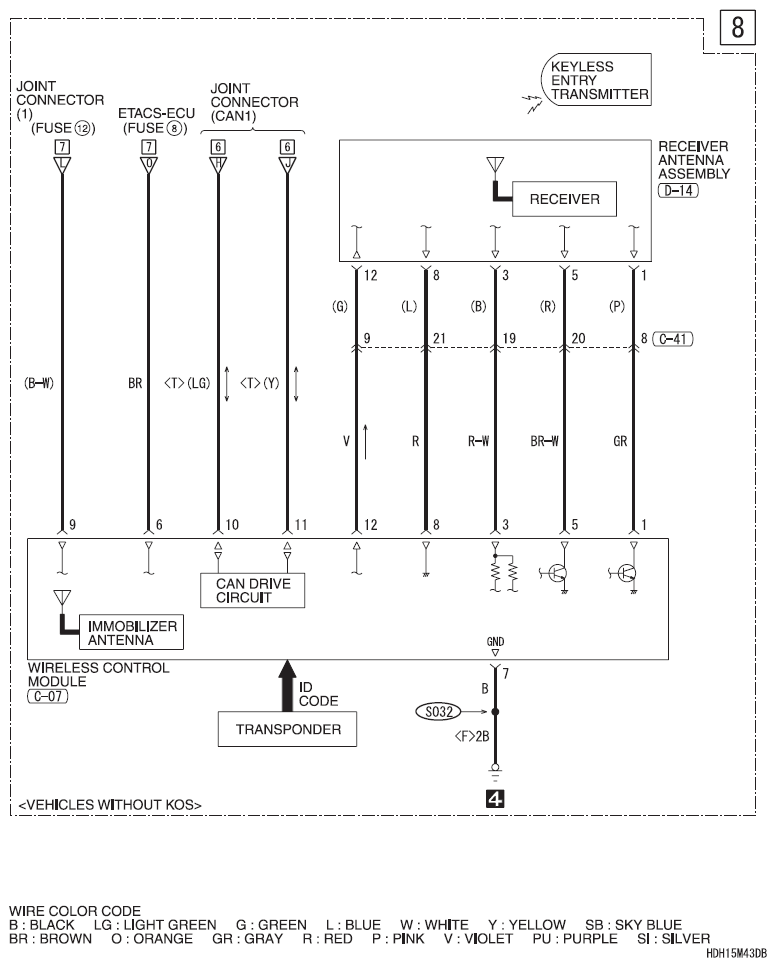

Fig 8: Theft-Alarm System - Circuit Diagram (8 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

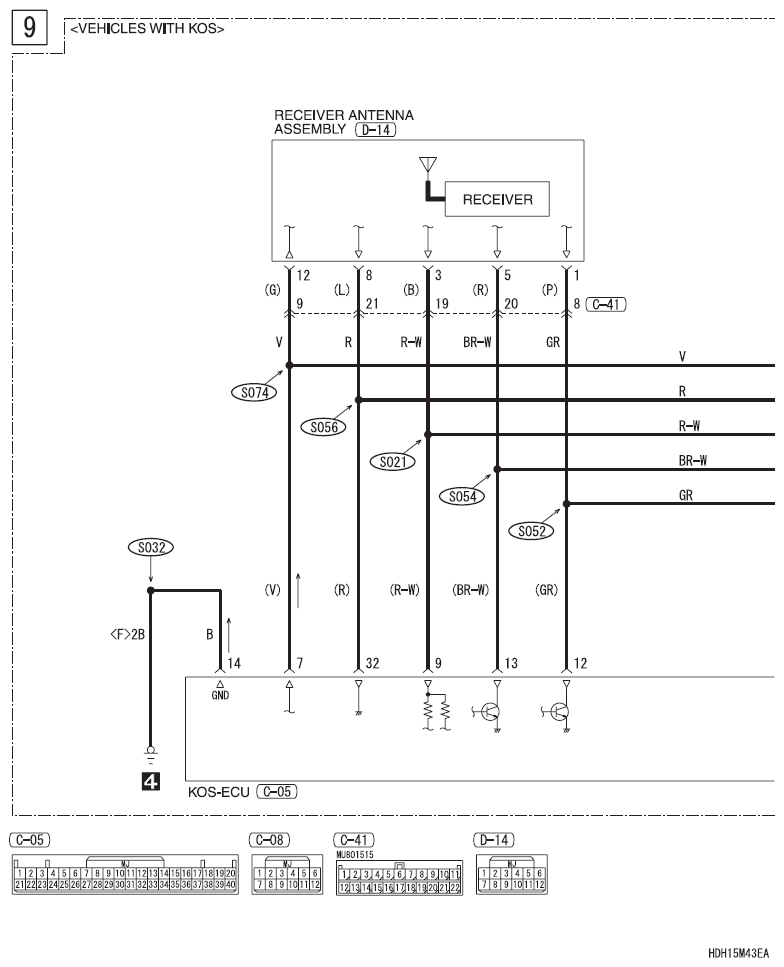

Fig 9: Theft-Alarm System - Circuit Diagram (9 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

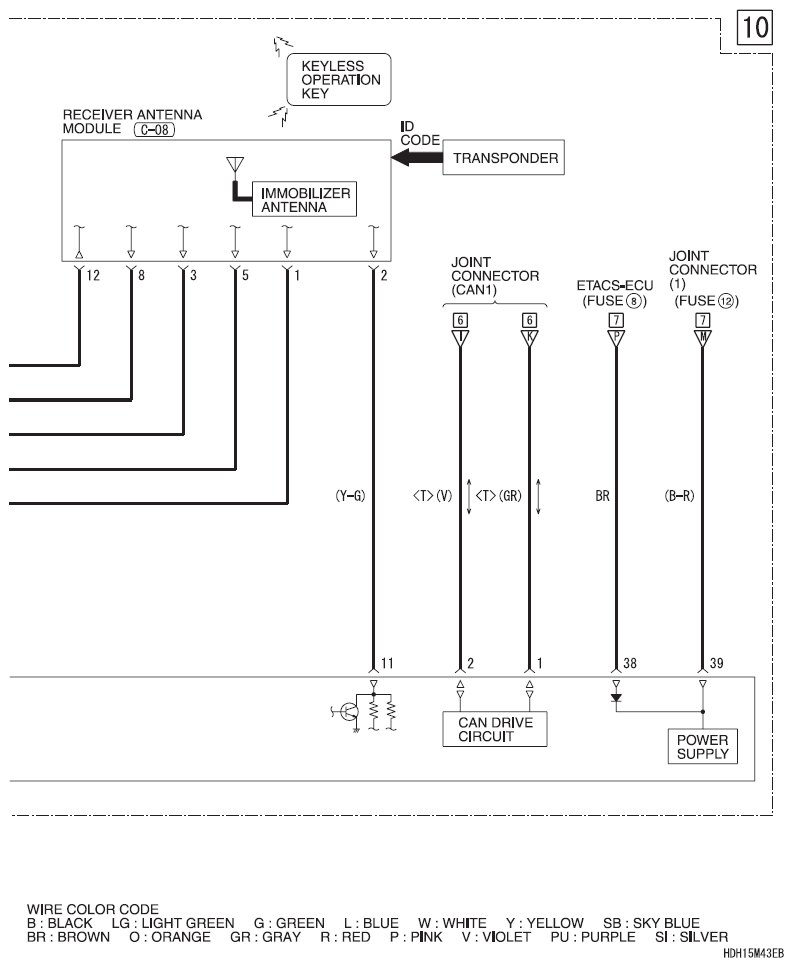

Fig 10: Theft-Alarm System - Circuit Diagram (10 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
