Removal And Installation

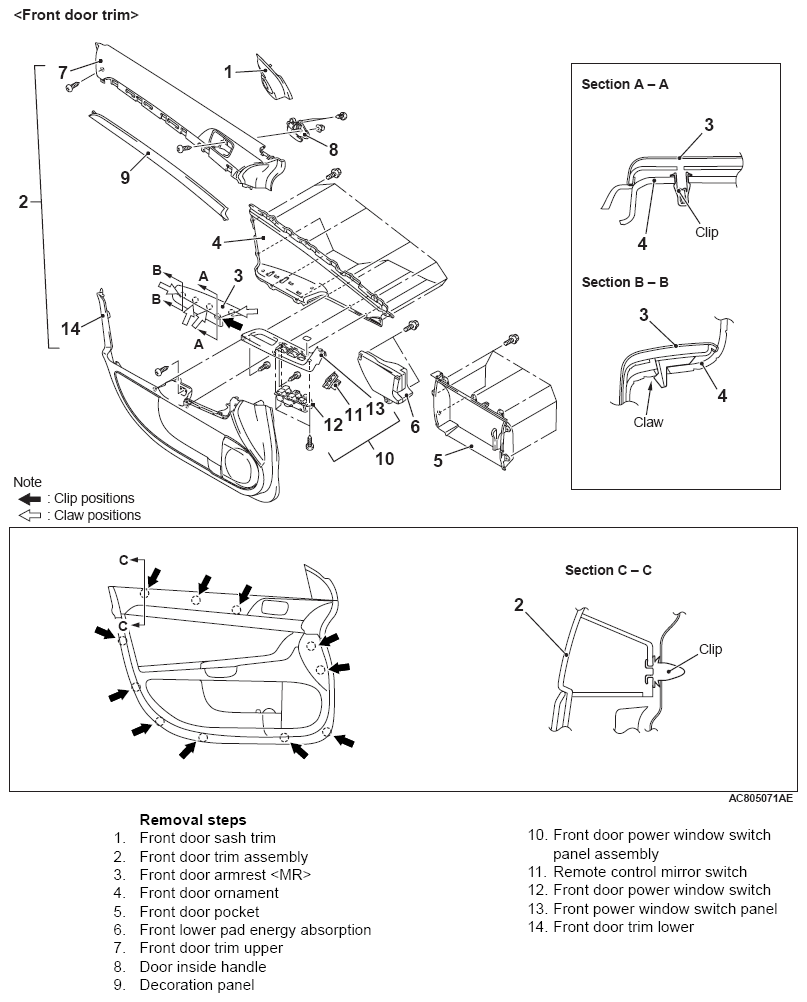

Fig 1: Removing/Installing Door Trim Components (Front Door Trim)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

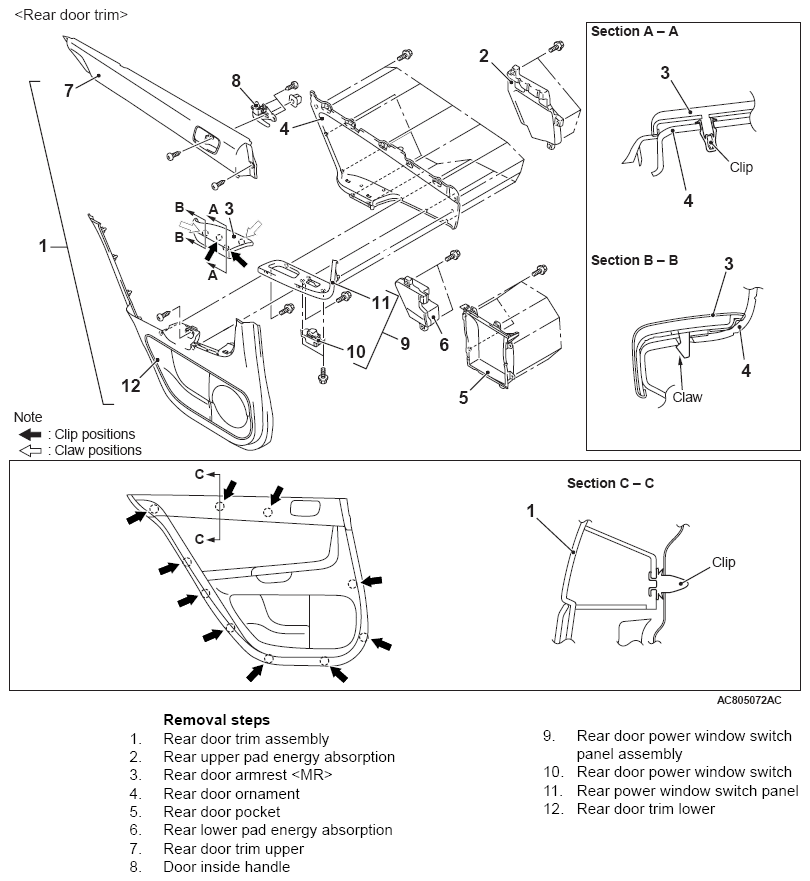

Fig 2: Removing/Installing Door Trim Components (Rear Door Trim)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
