Removal And Installation: Notes

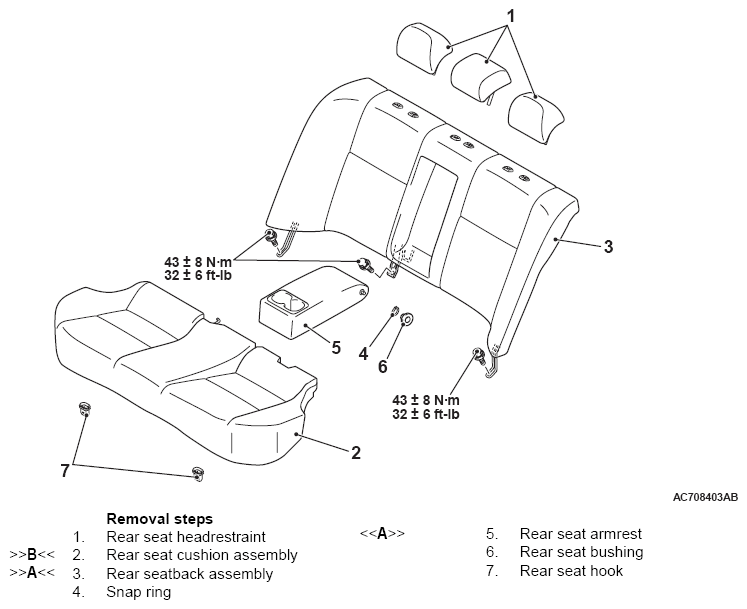

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specifications
G09651733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
