Removal And Installation: Notes

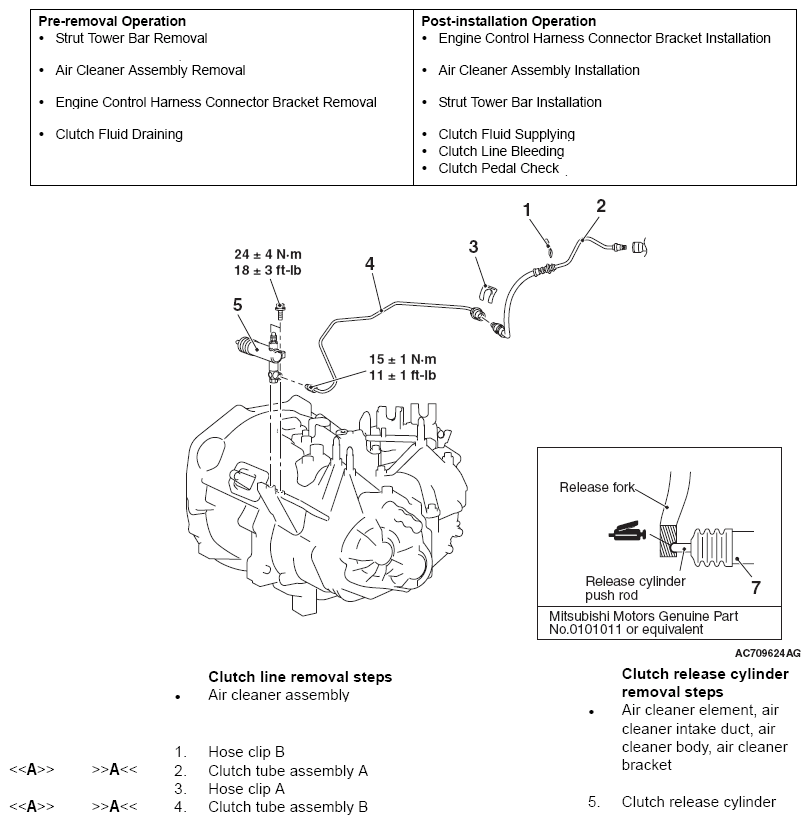

Fig 1: Removing/Installing Clutch Control With Torque Specifications
G09641123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
