Inspection Procedure 1: No navigation screen is displayed: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:

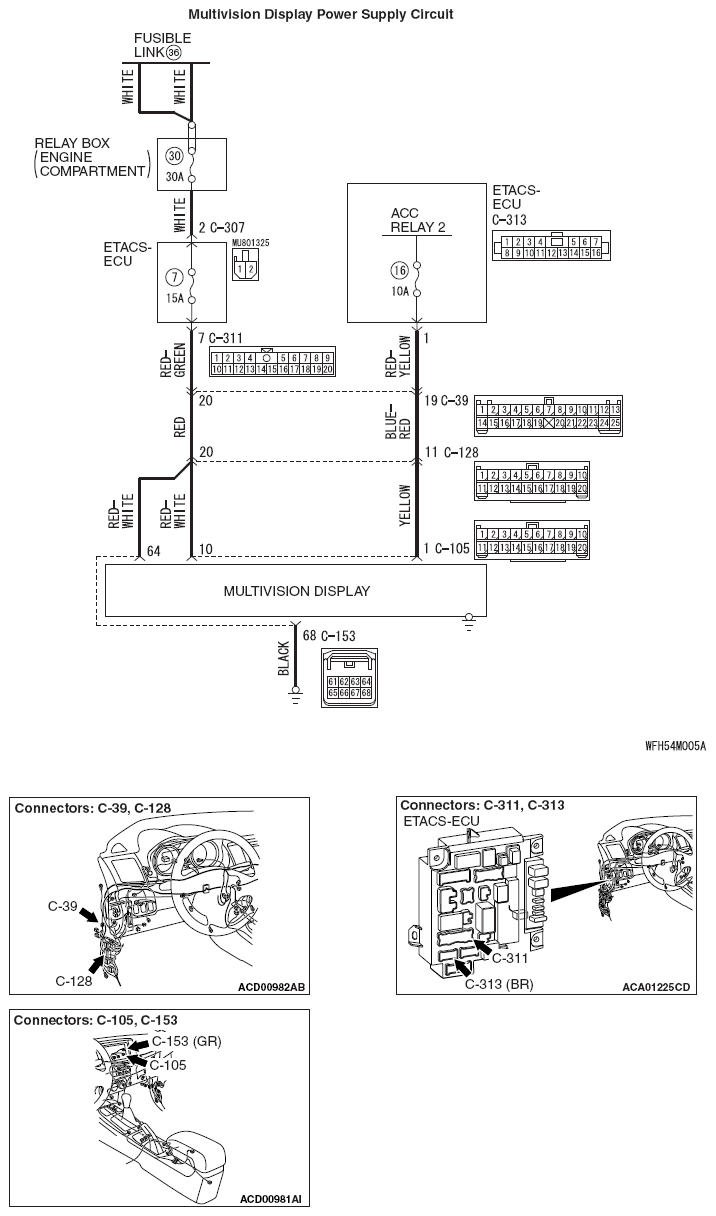

Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)
CAUTION:
When the ignition switch is turned to the ACC position for 30 minutes with the ETACS-ECU function, the ACC power is cut-off automatically. For this function, the time to cut-off can be changed with ETACS system by the scan tool MB991958 or the MMCS operation. (Refer to
ON-VEHICLE SERVICE
< ETACS > or
ON-VEHICLE SERVICE
< MMCS >).
