DIAGNOSTIC ITEM 6: Diagnose when the scan tool cannot receive the data sent by steering wheel sensor: Diagnosis
WARNING: This page is about a different variant/trim than selected.
Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe
- STEP 1. Check joint connector (CAN2) C-05 and steering wheel sensor connector C-211 for loose, corroded or damaged terminals, or terminals pushed back in the connector. CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector. For details, refer to SERVICE PRECAUTIONS .
Q: Are joint connector (CAN2) C-05 and steering wheel sensor connector C-211 in good condition?
- YES: Go to Step 2.
- NO: Repair the damaged parts.
- STEP 2. Check the wiring harness between joint connector (CAN2) C-05 and steering wheel sensor connector C-211 for open circuit. CAUTION: Strictly observe the specified wiring harness repair procedure. For details, refer to SERVICE PRECAUTIONS .
- Disconnect joint connector (CAN2) C-05 and steering wheel sensor connector C-211, and check the wiring harness.

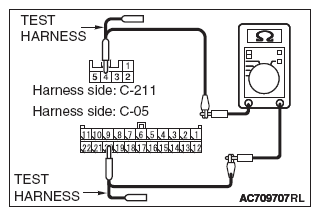

- Check the wiring harness between joint connector (CAN2) C-05 (terminal 9) and steering wheel sensor connector C-211 (terminal 3)
OK: Continuity exists (2 Ω or less)

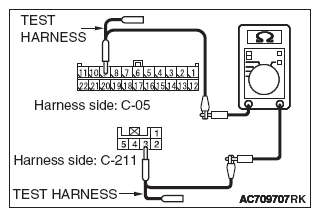

- Check the wiring harness between joint connector (CAN3) C-124 (terminal 20) and steering wheel sensor connector C-211 (terminal 4)
OK: Continuity exists (2 Ω or less)
Q: Is the wiring harness between joint connector (CAN2) C-211 and steering wheel sensor connector C-211 in good condition?
- YES: Check the power supply circuit of the steering wheel sensor. Refer to DTC C121A ABNORMALITY IN STEERING WHEEL SENSOR CALIBRATION .
- NO: Repair the wiring harness between joint connector (CAN2) C-05 and steering wheel sensor connector C-211.
