>> A << Coil Spring Installation

Install the coil spring to align the bottom with the shape of the strut spring seat.

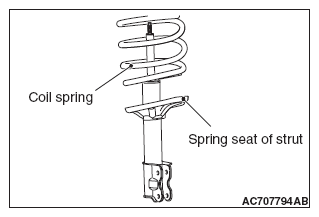

Fig 1: Identifying Coil Spring And Spring Seat Of Strut
G09650700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
