>> A << Manual Control Shaft/Bolt/Plug Installation

CAUTION: When installing bolt, use magnetic tools to prevent them from falling out.

Install the manual control shaft carefully and tighten the bolt to the specified torque.
Tightening torque: 10 ± 1.5 N.m (89 ± 8 in-lb)

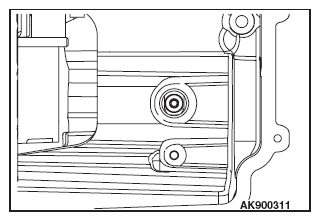

Fig 1: Identifying Manual Control Shaft Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the plug to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

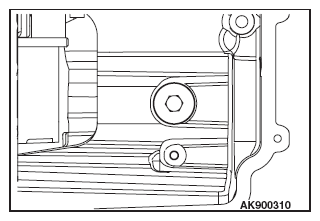

Fig 2: Identifying Manual Control Shaft Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
