>> A << Taper Roller Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Using the special tools, MD998812, MD998813 and MD998819, indicated below, install the taper roller bearing.

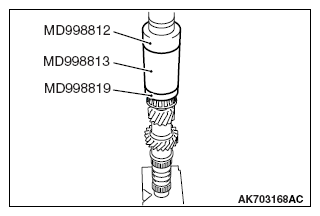

Fig 1: Identifying Taper Roller Bearing With Special Tools, MD998812, MD998813 And MD998819
G09641253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
