>> I << Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.

Using special tool, MD999601, drive the oil seal as deep into place as shown in the illustration.

Fig 1: Identifying Oil Seal With Using Special Tool MD999601
G09641263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

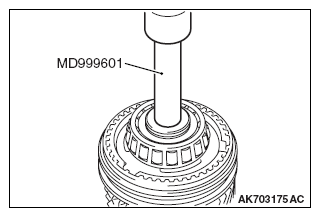

Fig 2: Identifying Special Tool MD999601
G09641264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
